The earth does neither gain nor loses heat as a whole. It keeps its temperature constant. This is only possible if the quantity of heat absorbed as insolation equals the amount lost by the earth as a result of terrestrial radiation. The heat budget or heat balance of the earth is defined as the balance between insolation and terrestrial radiation. Incoming Solar Radiation, or Insolation, is the energy received by the earth's surface in the form of short waves. This article will explain to you about the Insolation and Heat Budget which will be helpful in Geography preparation for the UPSC Civil service exam.

Insolation

• Insolation is the term for incoming solar radiation that is intercepted by the earth.
• Some of this solar radiation (insolation) is absorbed by the earth, which is then radiated back into space via terrestrial radiation.
• The earth's heat budget is the process by which the Earth maintains a constant temperature through the intake and outflow of heat.

Factors Affecting Insolation

• On the earth's surface, the amount of insolation received is not uniform.
• It changes depending on the location and time.
• The maximum yearly insolation is received in the tropical regions, and it steadily diminishes towards the poles.
• Summers have greater insolation and winters have less. The following are the primary elements:
  • Rotation of the earth on its axis.
  • The earth’s revolution.
  • The angle of incidence of the sun’s rays.
  • Duration of the day.
  • Transparency of the atmosphere.

Rotation of the Earth on its axis

• Because of the Earth's rotation, half of the planet receives sun insolation while the other half remains dark.
• This has an impact on the amount of solar insolation in half of the world.

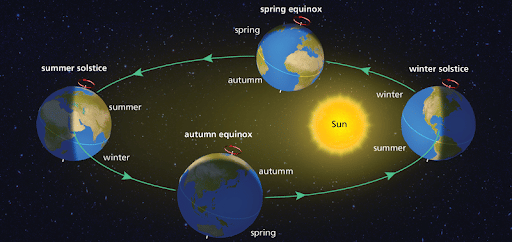

The Earth’s Revolution

• The earth revolves on its own axis at a 66.5-degree angle to the plane of its orbit around the sun.
• The amount of insolation received at various latitudes is influenced more by the earth's rotation on this inclined axis. Because of the curvature of the Earth's surface, insolation is concentrated towards the equator.
• The Earth's spin axis is tilted by 23.4 degrees relative to a line perpendicular to the Earth's orbital plane so that as the Earth orbits around the Sun, insolation is concentrated in the northern hemisphere (summer in the northern hemisphere) and then the southern hemisphere (winter in the southern hemisphere) (winter in the northern hemisphere).
• Also, the orbit of revolution around the sun is elliptical.

The angle of incidence of the sun’s rays

• The sun's rays reach the surface of the Earth at different angles in different areas because the earth is a geoid that resembles a sphere.
• This differential reception is dependent on the location's latitude.
• The lower the latitude, the smaller the angle they make with the earth's surface.
• The vertical rays always cover a smaller area than the slant rays.
• The energy is spread as more space is covered, and the net energy received per unit area declines.

Varying lengths of day and night

• This factor varies from place to place and season to season. This also decides the amount of insolation received on the earth’s surface.
• The longer the duration of the day, the higher the amount of insolation achieved and vice versa.
• Duration of the day also varies according to the revolution of the earth around the sun and earth tilted axis in the northern hemisphere and southern hemisphere.
• Seasons and varied lengths of day and night are caused by the earth's inclined axis at an angle of 66 1/2 degrees.
• In the northern hemisphere in winter (December), the hours of darkness gradually increase as we move northward.
• In mid-winter on December 22nd, the sun never 'rises' at the Arctic Circle (6612 degrees North), and the entire day is black.
• Beyond the Arctic Circle, the number of days with total darkness grows, and by the time we reach the North Pole (90 degrees North), half of the year will be spent in darkness.
• In the summer (June), the situation is exactly the opposite.
• As we move closer to the poles, the amount of daylight rises.
• At the Arctic Circle, the sun never ‘sets’ at mid-summer (21st June) and there is a complete 24 hour period of continuous daylight.
• In summer the region north of the Arctic Circle is popularly referred to as ‘Land of the Midnight Sun’.
• At the North Pole, there will be six months of continuous daylight.
• At the Arctic Circle, the sun never sets during mid-summer (June 21st) and there is a full 24 hours of daylight.
• During the summer, the area north of the Polar Circle is known as the 'Land of the Midnight Sun.'
• There will be six months of continuous daylight at the North Pole.

Transparency of the Atmosphere

• The amount of transparency in the atmosphere is determined by cloud cover and thickness, dust particles, water vapor, and other factors.
• Insolation is reflected, absorbed, or transmitted by them.
• The ability of solar energy to reach the earth's surface is hampered by thick clouds.
• Water vapor, on the other hand, absorbs solar radiation, resulting in less insolation reaching the surface.

Insolation - Mechanism

• This mechanism takes place by the coupled effect of atmosphere and ocean circulation and they maintain the temperature on earth in the following way

• The heat engine of the climate ought to redistribute solar heat from the equator toward the poles but also from the Earth’s surface and lower atmosphere in return to space.
• When the influx of incoming solar energy is harmoniously balanced by an equivalent flow of heat to space, Earth is in its radiative equilibrium and global temperature is relatively persistent.
• The equator and the 40° N and S latitudes receive plenty of sunlight, making them energy surplus areas.
• Beyond 40° N and S latitudes, places lose more heat than they absorb from sunshine, resulting in energy deficits.
• Most of the heat transfer takes place across the mid-latitudes (30° to 50°), and hence much of the stormy weather is associated with this region.
• As a result, the flow of surplus energy from lower latitudes to higher latitudes' deficit energy zone maintains an overall equilibrium over the earth's surface.

Heat Budget

• A heat budget is an exact balance between incoming heat collected by the planet and outgoing heat emitted as radiation.
• If the balance is disrupted, the earth will get increasingly warmer or cooler as time passes.

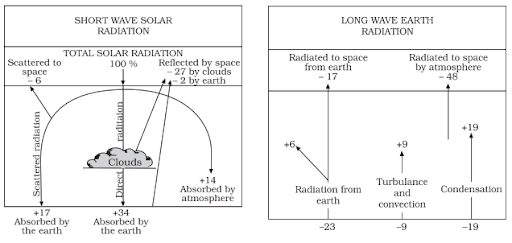

Heat Budget - Mechanism

• Take into account that the insolation received at the top of the atmosphere is 100%.
• Some energy is reflected, scattered, and absorbed as it passes through the atmosphere.(Carbon dioxide and other greenhouse gases in the atmosphere are good absorbers of long wave radiation).
• Only the remaining portion reaches the surface of the earth.
• Even before reaching the earth's surface, about 35 units are reflected back to space.
• 27 units are reflected back from the tops of clouds, whereas 2 units are reflected back from snow and ice-covered portions of the ground.
• The albedo of the earth is the quantity of radiation reflected.
• The remaining 65 units are absorbed by the earth's surface, 14 units by the atmosphere, and 51 units by the atmosphere. In the form of terrestrial radiation, the earth returns 51 units.

• 17 units are directly radiated into space, while the remaining 34 units are absorbed by the atmosphere (6 units absorbed directly by the atmosphere, 9 units through convection and turbulence, and 19 units through latent heat of condensation).
• The atmosphere absorbs 48 units, which are then radiated back into space (14 units from insolation + 34 units from terrestrial radiation).
• As a result, the total radiation returning from the earth and atmosphere is 17+48=65 units, balancing the total of 65 units received from the sun.

Albedo

• The earth does not gain or lose heat as a whole. It keeps its temperature constant.
• This is only possible if the amount of heat absorbed as insolation equals the amount lost by the earth as a result of terrestrial radiation.
• Albedo is a measurement of how much light strikes a surface and is reflected back without being absorbed.
• It has a value of less than one and is a reflection coefficient.
• Some solar radiation is reflected, scattered, and absorbed as it passes through the atmosphere.
• The albedo of the earth is the quantity of radiation reflected.
• Varying surfaces will have different albedo values.

• The "Urban Heat Island Influence" occurs when highly developed areas, such as cities, have higher average temperatures than surrounding suburban or rural areas due to the effect of albedo.
• Less foliage, larger people density, and more infrastructure with dark surfaces can all be blamed for the higher average temperature (asphalt roads, brick buildings, etc.).

Variation in the Net Heat Budget of the Earth

• Although the Earth as a whole maintains a balance between insolation and terrestrial radiation, we do not see this at all latitudes.
• The amount of insolation in the tropical zone is greater than the amount of terrestrial radiation. Thus, it is a location with surplus heat.
• The heat gain in the polar zone is smaller than the heat loss. As a result, it is a heat-deficit region.
• Therefore, insolation causes a heat imbalance at various latitudes.
• Winds and ocean currents, which carry heat from surplus heat zones to deficit heat regions, help to mitigate this imbalance to some extent.
• This process of redistribution and balancing of latitudinal heat is called Latitudinal Heat Balance.

Significance

• The heat balance of the Earth is a critical component of what makes it livable and this is achieved by the Heat Budget of the Earth.
• It keeps our earth warm.
• It is critical for increasing the production of solar panels that capture and convert this energy.
• It is the cause of varying rain patterns from the equator to the poles.
• It is also responsible for temperature changes from the equator to the poles.
• It aids in the photosynthesis process and so the growth of plants.

Conclusion

The sun is the most powerful source of heat. And the sun's heat is distributed differently over the globe, which is the ultimate cause of all climatic traits. As a result, understanding the patterns of temperature distribution in different seasons is critical for comprehending other climatic elements such as wind systems, pressure systems, precipitation, and so on.

FAQs

MCQs

1. What is the primary source of Earth's heat energy?

A) Earth's core
B) Sun
C) Moon
D) Ocean currents

2. Which term refers to the percentage of incoming sunlight reflected back by the Earth's surface?

A) Insolation
B) Heat budget
C) Albedo
D) Convection

3. In which region is insolation the highest?

A) Poles
B) Equator
C) Mid-latitudes
D) High altitudes

4. What happens when Earth's outgoing radiation exceeds incoming solar radiation?

A) Global cooling
B) Global warming
C) Stable temperatures
D) Increase in greenhouse gases

5. Which factor does not significantly affect the Earth's insolation?

A) Latitude
B) Cloud cover
C) Sunspots
D) Earth's core temperature

GS Mains Questions and Model Answers

Q1: Examine the role of the Earth's heat budget in maintaining global temperatures.

Model Answer: The Earth's heat budget balances the incoming solar radiation (insolation) with outgoing terrestrial radiation, ensuring stable global temperatures. Factors like albedo, atmospheric composition, and cloud cover influence this balance. If more energy is absorbed than emitted, global warming occurs, and vice versa. The interaction between insolation and terrestrial radiation is critical for regulating climates, influencing weather patterns, and sustaining life.

Q2: Discuss how the concept of albedo impacts the Earth’s heat budget.

Model Answer: Albedo refers to the reflectivity of Earth's surfaces, determining how much solar radiation is reflected back into space. Surfaces like ice or snow, with high albedo, reflect more sunlight, cooling the Earth, while darker surfaces, such as oceans and forests, absorb more heat. Changes in albedo, due to factors like deforestation or polar ice melting, directly affect the Earth's heat budget, potentially leading to global warming or cooling.

Q3: Analyze the impact of latitude on the distribution of insolation across the Earth's surface.

Model Answer: Latitude significantly influences the amount of insolation received by different regions of the Earth. Areas near the equator receive direct sunlight throughout the year, resulting in high insolation, while polar regions receive oblique sunlight, leading to lower insolation. This variation in solar energy distribution creates different climatic zones, from tropical to polar, and affects global weather patterns and biodiversity.

Previous Year Questions on Insolation

1. UPSC CSE Prelims 2020

Question: Which factor primarily affects the distribution of insolation on Earth?
A) Wind patterns
B) Ocean currents
C) Latitude
D) Longitude

Answer: C

Explanation: Latitude primarily affects the distribution of insolation, as areas near the equator receive more direct sunlight than those near the poles.

2. UPSC CSE Mains 2019

Question: Explain how the Earth’s heat budget plays a role in shaping climatic patterns globally.

Model Answer: The Earth's heat budget maintains the balance between incoming solar radiation and outgoing terrestrial radiation, directly influencing global temperatures. Variations in insolation due to latitude, cloud cover, and albedo create distinct climatic patterns, from tropical to polar regions. This balance is critical for weather systems, ocean currents, and ecological zones. An imbalance, such as increased greenhouse gases trapping more heat, can lead to global warming and altered weather patterns.
