As compared to a full-wave rectifier using two diodes, the four diode bridge rectifier has the dominant advantage of :
lower peak inverse voltage requirement
Compare the two circuits on every count and only one difference is decisive.
| Centre-tapped (2 diodes) | Bridge (4 diodes) | |
|---|---|---|
| Peak inverse voltage | 2Vm | Vm |
| Ripple factor | 0.482 | 0.482 |
| Efficiency | 81.2 % | 81.2 % |
| Ripple frequency | 2f | 2f |
| Transformer | Centre tap required | None needed |
| Diodes conducting | 1 at a time | 2 in series |
Ripple factor and efficiency are identical, because both circuits produce exactly the same full-wave output waveform, so options 3 and 4 fall immediately. Current-carrying capacity is a property of the diodes chosen, not of the topology, so option 1 is no advantage either.
The PIV difference is where the bridge wins. In the centre-tapped circuit the non-conducting diode sees the voltage of both halves of the secondary — its own half plus the conducting half, which is already tied to the load:
\(PIV_{\text{centre-tap}}=2V_{m}\)
In the bridge, the two reverse-biased diodes share the reverse voltage; each blocks only
\(PIV_{\text{bridge}}=V_{m}\)
Why that matters in practice. Halving the PIV requirement halves the voltage rating — and therefore the cost — of every diode, and it is the reason bridge rectifiers dominate mains power supplies where Vm is already around 325 V for a 230 V supply. A centre-tapped design would need diodes rated beyond 650 V for the same job.
The bridge's second, related advantage is that it uses the whole secondary winding on both half-cycles, so for a given transformer it delivers roughly twice the DC output voltage of a centre-tapped circuit, and the transformer utilisation factor rises from 0.693 to 0.812. Its cost is two extra diodes and two forward drops (about 1.4 V instead of 0.7 V), which is why the centre-tapped circuit is still preferred in very-low-voltage supplies where a whole extra diode drop would matter.
Hence, the dominant advantage is the lower peak inverse voltage requirement.
Similar Questions
Consider the following rectifier circuits :
1. Half-wave rectifier without filter
2. Full-wave rectifier without filter
3. Full-wave rectifier with series inductance filter
4. Full-wave rectifier with capacitance filterThe sequence of these rectifier circuits in decreasing order of the ripple factor is
Assertion (A) : Capacitor input filter gives a high output voltage which drops as the load is increased.
Reason (R) : Capacitor input filters produce more heating in the rectifiers.

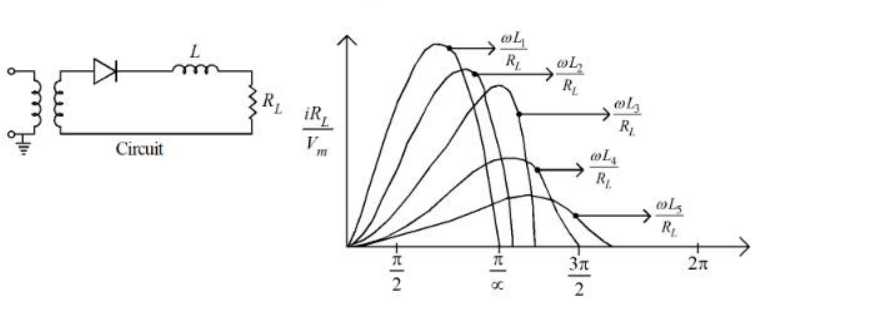

For the different values of 'L' while keeping 'RL' as constant, following graph is obtained from the given circuit.
