A wind turbine is a structure that converts wind energy into electricity by utilizing the aerodynamic force generated by the rotor blades. The air pressure on one side of the blade lowers when the wind blows across it. Wind turbines operate on a simple principle: rather than using electricity to create wind, they utilize wind to create electricity. The propeller-like blades of a turbine are turned by the wind around a rotor, which spins a generator, which generates energy. This article will explain to you about Working of Wind Turbines which will be helpful in preparing the Environment syllabus for the UPSC Civil Service exam.

Working of Wind Turbines

• The aerodynamic force of the rotor blades, which act similarly to an airplane wing or helicopter rotor blade, converts wind energy into electrical energy in a wind turbine.
• The air pressure on one side of the blade lowers when wind blows across it. Lift and drag are created by the differential in air pressure across the two sides of the blade.
• The lift force is greater than the drag force, causing the rotor to spin.

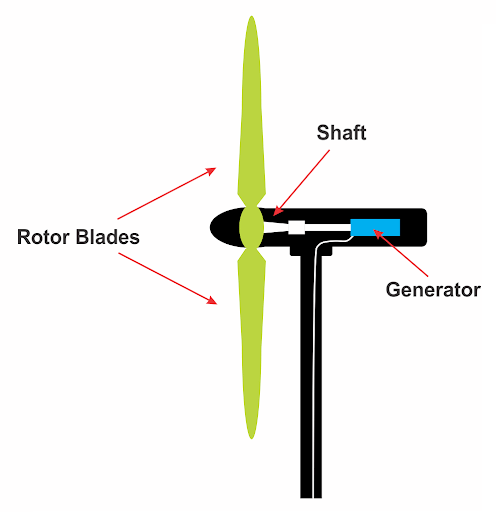

• The rotor is connected to the generator either directly (if it's a direct drive turbine) or through a shaft and a series of gears (gear box) that speeds up the spinning and allows the generator to be physically smaller.
• This conversion of aerodynamic force to generator rotation produces electricity.

Wind Turbines - Types

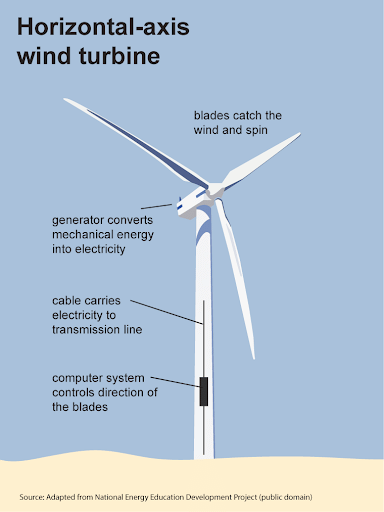

Horizontal Axis Wind Turbine

• Due to its strength and efficiency, horizontal axis wind turbines are the most often utilized turbines.
• The towers' bases must be exceedingly robust in order for the rotor shaft to be mounted at the top of the tower, exposing the turbine to harsher winds.
• When compared to a vertical axis wind turbine, the revolution of the turbine blades can generate greater electricity because they are perpendicular to the wind.
• However, the building of this sort of turbine necessitates a large crane to hoist the components to the top of the tower and hefty support for the tower to handle the weight of the blades, gearbox, and generator.
• When the wind is blowing down, the turbine structure may experience mechanical failure, which could result in structural failure.
• This can be avoided by configuring the turbines to face upwind. To track the direction of the wind and avoid damaging the turbine, horizontal axis wind turbines require additional yaw control.

Vertical Axis Wind Turbine

• As the blades are rotated on a rotor shaft that is perpendicular to the ground, vertical axis wind turbines are less impacted by frequent wind direction changes than horizontal axis wind turbines.
• The turbine does not need to rotate to monitor wind direction because the blades and shaft are positioned in this manner.
• Due to the difficulty of putting the shaft and its components atop the tower, the shaft is installed near ground level.
• The advantage of mounting the turbine at ground level is that it is easy to maintain and may be installed in places like rooftops.
• The efficiency of this turbine installation is reduced due to air drag and lower wind speeds when compared to higher wind speeds seen at higher elevations.

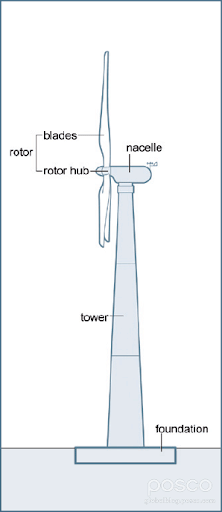

Wind Turbine Tower

• The turbine's structure is supported by the tower, which is made of tubular steel.
• Towers are typically delivered in three sections and constructed on site.
• Taller towers allow turbines to harness more energy and generate more electricity since wind speed increases with height.
• Winds are also less turbulent at elevations of 30 meters (about 100 feet).

Conclusion

To be reliable and available, wind turbines require routine maintenance. Turbines are available to generate electricity 98 percent of the time in the best-case scenario. In cold climates where in-cloud icing and freezing rain events occur, ice accretion on turbine blades has also been found to severely limit wind turbine efficiency, which is a common challenge. Internal heating or, in certain cases, gasoline-powered helicopters spraying clean warm water on the blades are used to de-ice the blades. A tiny onboard crane is common on modern turbines for hauling maintenance tools and minor components. Large, heavy components, such as generators, gearboxes, and blades, are rarely replaced, necessitating the use of a heavy lift external crane.

FAQs

Question. What is the principle behind wind turbines?

Question. How does a wind turbine generate electricity?

Question. What are the main components of a wind turbine?

Question. What factors affect the efficiency of wind turbines?

Question. What are the environmental benefits of wind turbines?

MCQs

1. What type of energy do wind turbines primarily convert?

A) Solar energy into electrical energy

B) Kinetic energy into mechanical energy

C) Potential energy into thermal energy

D) Nuclear energy into electrical energy

2. Which component of a wind turbine houses the generator?

A) Blades

B) Rotor

C) Nacelle

D) Tower

3. What is the minimum wind speed typically required to operate a wind turbine?

A) 2 m/s

B) 5 m/s

C) 10 m/s

D) 15 m/s

4. What is the primary factor affecting the power output of a wind turbine?

A) Blade material

B) Tower height

C) Wind speed

D) Generator capacity

5. Which of the following is a disadvantage of wind turbines?

A) Renewable energy source

B) Noise pollution

C) Reduction of carbon emissions

D) Minimal land usage

GS Mains Questions and Model Answers

Q1: Explain the working mechanism of wind turbines and their contribution to sustainable energy.

Answer: Wind turbines work by converting wind's kinetic energy into mechanical energy through the rotation of blades. This mechanical energy is transferred to a generator housed in the nacelle, where it is converted into electricity. Wind turbines are a cornerstone of sustainable energy production as they rely on an inexhaustible natural resource and do not emit greenhouse gases. Their integration into energy grids reduces dependence on fossil fuels, contributing to a cleaner and more sustainable environment.

Q2: Discuss the challenges associated with the deployment of wind turbines in India.

Answer: The deployment of wind turbines in India faces challenges such as inconsistent wind patterns, high installation costs, and the need for large land areas in optimal wind zones. Additionally, the integration of wind energy into the power grid requires advanced storage and distribution systems. Addressing these challenges through technological advancements, supportive policies, and financial incentives can enhance the adoption of wind energy in the country.

Q3: Evaluate the environmental and economic benefits of wind turbines compared to fossil fuels.

Answer: Wind turbines offer significant environmental benefits by providing a renewable energy source that reduces greenhouse gas emissions and air pollution. Economically, they lower dependency on imported fuels and create jobs in the renewable energy sector. While the initial installation costs are high, the long-term operational costs are minimal compared to fossil fuels. This makes wind turbines a viable and sustainable alternative to conventional energy systems.

Previous Year Questions on Wind Turbines

1. UPSC CSE Prelims 2020

Question: Which of the following statements about wind energy is/are correct?

• Wind energy is a renewable energy source.
• The power output of a wind turbine is directly proportional to wind speed.

A) 1 only

B) 2 only

C) Both 1 and 2

D) Neither 1 nor 2

2. UPSC CSE Mains 2019

Question: Analyze the role of wind turbines in achieving India's renewable energy targets.

Answer: Wind turbines play a critical role in India's renewable energy goals by harnessing the vast potential of wind energy, particularly in states like Tamil Nadu, Gujarat, and Maharashtra. They contribute to reducing carbon emissions, meeting international climate commitments, and decreasing reliance on fossil fuels. The government’s focus on wind-solar hybrid systems and policies like renewable purchase obligations further support their adoption. However, addressing challenges like storage, grid integration, and land acquisition is essential to maximize their impact on India’s renewable energy transition.
