The simultaneous production of various kinds of energy from a single fuel source is known as cogeneration. It is also known as power district heating and combined heat and power (CHP). In many types of cogeneration applications, the two types of energy produced are often thermal (heat) and electrical (electricity). Decentralized energy is reflected by small CHP plants. Cogeneration power plants are typically 50 to 70 % more efficient than single-generation power plants. This article will explain to you about Cogeneration which will be helpful in preparing the Environment syllabus for the UPSC Civil Service exam.

Cogeneration - Concept

• The sequential generation of two separate forms of usable energy from a single primary energy source, often mechanical and thermal energy, is known as cogeneration or combined heat and power (CHP).
• Mechanical energy can be utilized to power an alternator, which generates electricity, or to power rotating equipment, such as a motor, compressor, pump, or fan, which provides a variety of services.
• Thermal energy can be used directly in processes or indirectly to generate steam, hot water, hot air for dryers, or chilled water for process cooling.
• Cogeneration, in practice, comprises the use of otherwise lost heat (such as a manufacturing plant's exhaust) to generate additional energy benefits, such as providing heat or power for the building in which it is running.
• Cogeneration is beneficial to both the bottom line and the environment, as it avoids the use of polluting fossil fuels by recycling waste heat.

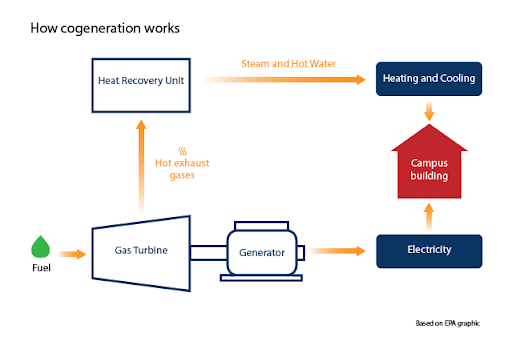

How Does Cogeneration Work?

• A prime mover, such as a reciprocating engine, turbine, or fuel cells, is used to power the cogeneration system.
• The chemical energy held in the fuel is converted to electrical energy by this prime mover, which is usually paired with an alternator.
• Natural gas is commonly used as a fuel, but diesel and hydrogen are also viable options.
• This method of generating energy also generates heat. Instead of being released into the atmosphere as waste heat, the heat is absorbed and put to better use.
• Heating, cooling, hot water, and industrial applications are just a few of the ways this heat is put to good use.

Cogeneration - Types of Plants

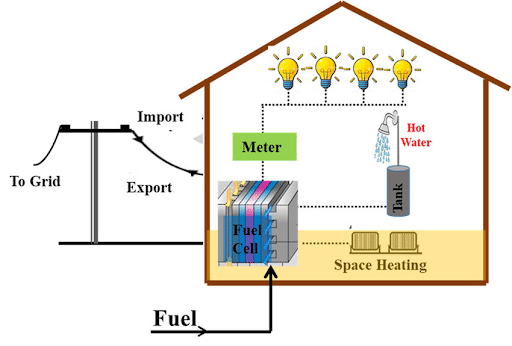

Micro CHP

• Micro cogeneration, also known as micro combined heat and power, is a type of distributed energy resource (DER).
• In a home or small business, the installation is usually less than 5 kWe.
• Instead of just heating space or water by burning fuel, some of the energy is turned to electricity as well.
• This electricity can be consumed in the home or company, or it can be sold back into the electric power system if grid management allows it.

Trigeneration

• The practice of using some of the heat produced by a cogeneration plant to generate chilled water for air conditioning or refrigeration is known as trigeneration or combined cooling, heat and power (CCHP).
• To achieve this capability, an absorption chiller is attached to a combined heat and power (CHP) system.
• Because absorption chillers have no moving parts, they experience little to no wear and tear, therefore their operation and maintenance expenses are minimal.
• Furthermore, because of the technology, the entire lifecycle costs are cheap when used as part of a larger solution.

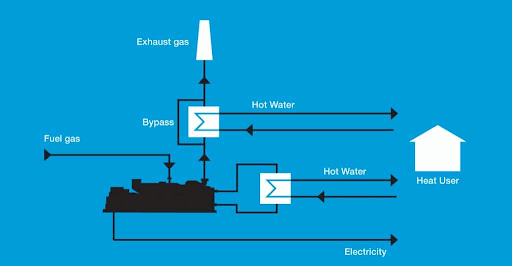

Combined Heat and Power District Heating

• Combined heat and power (CHP) is a group of technologies that produce electricity and heat at the same time on-site.
• A district energy system is a cost-effective approach to heat and/or cool a large number of buildings from a single source.
• It circulates steam, hot water, and/or chilled water to various buildings via a network of pipes.
• A microgrid is a network of energy sources and loads that is normally connected to and synchronized with the grid, but can also run in "island mode" independently.
• District energy systems and microgrids frequently include CHP. CHP, district energy systems, and microgrids increase energy efficiency, reduce carbon emissions, make it easier to integrate renewable energy sources, minimise operating costs, and improve the resilience of essential infrastructure.

Industrial CHP

• In pulp and paper mills, refineries, and chemical factories, cogeneration is still widely used.
• The heat is often recovered at higher temperatures (over 100 degrees Celsius) and used for process steam or drying activities in this type of "industrial cogeneration/CHP."
• This is more valuable and adaptable than low-grade waste heat, but it results in a little reduction in power generation.
• Industrial CHP has become increasingly appealing as a result of the rising focus on sustainability, as it reduces carbon footprint significantly when compared to generating steam or burning fuel on-site and importing electric power from the grid.
• Smaller industrial cogeneration units, with output capacities ranging from 5 to 25 megawatts, are a feasible off-grid solution for a number of remote applications looking to decrease carbon emissions.

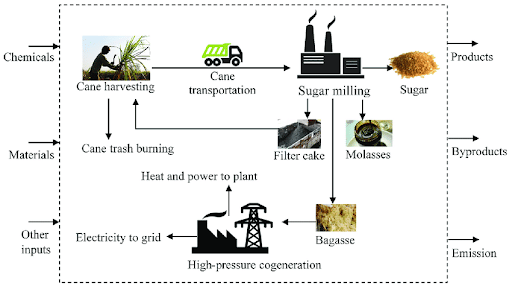

Cogeneration using Biomass

• Biomass is any plant or animal matter that can be used to generate heat or power, such as sugarcane, vegetable oils, wood, organic waste, and remnants from the food and agriculture industries.
• Brazil is now regarded as a global leader in biomass-based energy generation.
• The sugar and alcohol industries, which primarily employ sugarcane bagasse as a fuel for thermal and electric power generation, is a rising sector in the utilization of biomass for power generation.
• Cogeneration in the sugarcane sector is powered by the bagasse leftover from sugar refining, which is burned to generate steam.
• Steam can be fed via a turbine, which turns a generator and generates electricity.
• Energy cogeneration in sugarcane businesses in Brazil has been increasingly popular in recent years.
• Sugarcane businesses are able to supply the electric energy demand needed to function, as well as generate a surplus that can be sold, due to the implementation of energy cogeneration in the sugar and alcohol industries.

Advantages

• Lower CO2 Emissions: In comparison to electric power generation utilizing fossil fuel-based thermoelectric plants, such as natural gas, sugarcane bagasse energy-generating has environmental benefits due to lower CO2 emissions.
• Eventual Energy Destination: In addition to the environmental benefits, cogeneration with sugarcane bagasse has efficiency advantages over thermoelectric generation due to the eventual destination of the energy generated.
• Heat Utilization: While some of the heat produced in a thermoelectric generation is wasted, with cogeneration, this heat can be utilized in the manufacturing process, boosting the total efficiency of the operation.

Disadvantages

• High Chlorine Content: Potassium sources with a high chlorine content, such as potassium chloride, are commonly utilized in sugarcane agriculture (KCl).
• Absorption of Potassium Chloride: Sugarcane absorbs significant doses of chlorine since KCl is treated in such large quantities.
• Dioxin Emission: When sugarcane bagasse is burned in a power plant, dioxins and methyl chloride are released as a result of this absorption. Dioxins are very poisonous and carcinogenic chemicals.
• Harms Ozone Layer: When methyl chloride is released into the atmosphere and reaches the stratosphere, it causes a catalytic process that causes ozone linkages to break down, which is extremely detrimental to the ozone layer.
• Chlorine begins a damaging cycle with another ozone molecule after each reaction.
• A single chlorine atom can destroy hundreds of ozone molecules in this fashion.
• These molecules are unable to absorb UV radiation because they have been damaged.
• Global Warming: As a result, UV radiation on Earth is increasingly intense, and global warming is worsening.

Cogeneration - India

• Co-generation has the potential to generate more than 20,000 MW of electricity in India, according to conservative estimations.
• Waste cogeneration is being encouraged in India because it is the world's largest producer of sugar.
• Facilities that require both heat and power, such as sugar and rice mills, distilleries, the petrochemical industry, and industries such as fertilizers, steel, chemical, cement, pulp and paper, and aluminum, have the potential for cogeneration.
• The primary objective of the cogeneration programme is to promote technologies that make the most use of the country's biomass resources for grid power generation.
• Bagasse, rice husk, straw, cotton stalk, coconut shells, soya husk, de-oiled cakes, coffee waste, jute wastes, groundnut shells, saw dust, and other biomass products are used to generate electricity.

Cogeneration - Advantages

• Sustainability: Higher efficiency equates to decreased fuel use. Because the majority of the world's electricity is still generated from fossil fuels, using less fuel minimizes the facility's carbon footprint.
• The decrease in surplus heat emitted into the atmosphere is a secondary environmental benefit of cogeneration.
• Economical Benefits: Economically, using less fuel to complete tasks results in lower energy expenditures and improved financial performance.
• Within the first several years, these operating savings could pay for the original investment in a cogeneration plant.
• Increased Fuel Efficiency: Cogeneration is noted for its high efficiency, which means it uses less fuel to produce the same amount of power and heat as other systems. As a result, it's a great environmentally friendly solution for fuel efficiency.
• Reduced Reliance on Grid: It is possible to totally "off-grid" or augment higher energy demands if a CHP system is used because it is not reliant on larger power infrastructure. This means better energy security and the ability to run completely "off-grid".
• Various Fuel Options: Although cogeneration is excellent at what it does, it is ultimately utilized to improve the efficiency of other energy sources rather than serving as its own source of energy.

Cogeneration - Applications

• Healthcare Facilities: To increase the quality of treatment, nursing homes and hospitals use sophisticated air management systems.
• Cogeneration is a suitable alternative for these facilities because they frequently require constant heating or cooling.
• Greenhouses: The constant requirement for heat and carbon dioxide to produce supply is one of the main reasons why many greenhouse operations have installed cogeneration systems.
• Universities and colleges: These institutions typically have huge facilities that are used all year and require a lot of electricity and heat.
• Cogeneration is used in a variety of other sectors, from chemical plants and manufacturing facilities to hotels, to improve financial performance and reduce environmental impact.

Cogeneration - Disadvantages

• Not an Intrinsic Energy Source: Larger systems' heating/electricity needs must be proportionate for optimal benefits (larger systems power heat all the time!).
• Cogeneration is only appropriate to places that have a demand for heating or cooling as well as electricity.
• Hefty Installation Costs: Although cogeneration helps to save money on the energy bills, certain systems have hefty installation fees.
• The capital required may be difficult for businesses considering smaller-scale installations to manage, and it can be off-putting if the long-term picture is not considered.
• Not Always Environment Friendly: Cogeneration systems that use renewable fuels such as biogas as their primary fuels are an environmentally favorable energy generation option.
• On the other hand, if a system uses diesel or other fossil fuels as a fuel source, it is not an environmentally beneficial option. This outweighs some of the benefits of cogeneration in terms of the environment.

Conclusion

Cogeneration is more of an idea than a single technology. Cogeneration plants are especially useful in colder climates where the heat can be used to heat buildings and industrial processes. Conventional power generation wastes up to 65 percent of energy potential as waste heat, whereas cogeneration plants have a conversion efficiency of 75-90 percent and are particularly useful in colder climates where the heat can be used to heat buildings and industrial processes. Peak electrical consumption is projected to decrease as more players and businesses participate in cogeneration. This benefits utility companies by lowering infrastructure costs and reducing the upward pressure on electricity prices.

FAQs

Question: What is cogeneration?

Question: How does cogeneration improve energy efficiency?

Question: What are the common applications of cogeneration?

Question: What are the environmental benefits of cogeneration?

Question: What are the challenges of implementing cogeneration systems?

MCQs

1. What does cogeneration refer to?

A) Generating electricity from solar energy

B) Simultaneous production of electricity and useful heat

C) Generating electricity from wind energy

D) Combining various energy sources to generate electricity

2. Which of the following is a major benefit of cogeneration?

A) Reduces fuel consumption

B) Increases greenhouse gas emissions

C) Reduces heat efficiency

D) Requires separate systems for electricity and heat

3. What is the primary environmental advantage of cogeneration?

A) Increased waste generation

B) Decreased energy efficiency

C) Lower greenhouse gas emissions

D) Higher electricity costs

4. In which sectors is cogeneration commonly used?

A) Agriculture and forestry

B) Industrial, residential, and commercial sectors

C) Transportation and logistics

D) Educational and healthcare institutions

5. What is one of the challenges of implementing a cogeneration system?

A) Low efficiency

B) High initial investment cost

C) Lack of heat demand

D) Limited electricity production

GS Mains Questions and Model Answers

Q1: Discuss the advantages of cogeneration in reducing environmental impact.

Answer: Cogeneration, or combined heat and power (CHP), offers significant environmental advantages by improving energy efficiency and reducing waste. By utilizing the waste heat produced during electricity generation, cogeneration systems can achieve efficiencies of up to 80-90%, compared to traditional systems that typically operate at around 30-40% efficiency. This increase in efficiency results in lower fuel consumption, which in turn reduces greenhouse gas emissions and other pollutants, contributing to cleaner energy generation. Cogeneration also decreases the need for separate heat production, further reducing environmental impact. It can be implemented in various industries, residential complexes, and commercial buildings, enabling more sustainable energy consumption patterns. Through these benefits, cogeneration plays an important role in achieving energy conservation goals and promoting a shift towards renewable and efficient energy systems, making it a key technology in reducing the environmental footprint of power generation.

Q2: How does cogeneration contribute to energy conservation in industrial applications?

Answer: Cogeneration contributes significantly to energy conservation in industrial applications by utilizing the waste heat from electricity generation for other purposes, such as heating water or air, which are essential in many industrial processes. In traditional energy systems, this waste heat is often released into the environment, contributing to energy inefficiency. In contrast, cogeneration systems capture this heat and use it for thermal energy needs, significantly reducing the amount of fuel required to produce the same amount of energy. This results in lower energy costs and reduced fuel consumption, contributing to overall energy savings. Industries with high thermal energy demands, such as manufacturing, food processing, and chemical industries, benefit the most from cogeneration. The reduction in carbon emissions is another important aspect of industrial cogeneration, helping industries meet environmental regulations while improving their energy efficiency. By promoting energy efficiency and reducing waste, cogeneration is a key technology for achieving sustainable industrial practices.

Q3: Explain the economic benefits of implementing cogeneration systems in urban settings.

Answer: Implementing cogeneration systems in urban settings offers significant economic benefits by optimizing energy use and reducing costs. In urban areas, where both electricity and thermal energy are in high demand, cogeneration systems efficiently produce both from a single energy source, thereby eliminating the need for separate heating and power generation systems. This dual-output system increases energy efficiency, leading to reduced fuel consumption and, consequently, lower energy bills for residents and businesses. Additionally, by reducing reliance on centralized power plants and the grid, cogeneration can help decrease transmission losses and enhance energy security in urban areas. The reduced environmental impact, through lower carbon emissions and waste heat recovery, also brings long-term economic advantages, as cities work to meet sustainability targets. The initial investment cost, although high, is often offset by the substantial savings in fuel costs and energy efficiency improvements. Thus, cogeneration systems provide a cost-effective and environmentally friendly solution for urban energy needs.

Previous Year Questions on  Cogeneration

1. UPSC CSE 2020

Question: Discuss the role of cogeneration in energy conservation and environmental sustainability.

Answer: Cogeneration plays a critical role in energy conservation by increasing energy efficiency through the simultaneous production of electricity and useful heat. It reduces fuel consumption, minimizes waste heat, and lowers greenhouse gas emissions, contributing to environmental sustainability. The system supports both industrial and residential energy needs, offering a cost-effective and eco-friendly energy solution.

2. UPSC CSE 2019

Question: Evaluate the challenges and benefits of implementing cogeneration systems in industrial sectors.

Answer: Cogeneration systems offer significant benefits to industries by improving energy efficiency, reducing fuel consumption, and lowering greenhouse gas emissions. However, the high initial cost of installation, the need for both electricity and heat demand, and the complexity of maintaining such systems pose challenges for their widespread adoption in industrial sectors.
