Luminescent solar concentrators (LSC) are garnering a lot of attention in the field of research among several new generation photovoltaic technologies because of their high power conversion efficiency. The global Luminescent Solar Concentrator Market was valued at USD 2.71 billion in 2021 and is predicted to reach USD 21.07 billion by 2029, growing at a CAGR of 29.20 percent between 2022 and 2029. A luminescent solar concentrator (LSC) is a transparent device that produces energy by focusing radiation, namely sun radiation. Luminescent solar concentrators work by collecting radiation across a vast area, converting it to luminescence (particularly, fluorescence), and directing the generated radiation to a smaller output target. This article will explain to you the Luminescent Solar Concentrators, which will be helpful in preparing the Environment Syllabus for the UPSC Civil Service Exam.

Luminescent Solar Concentrators - Concept

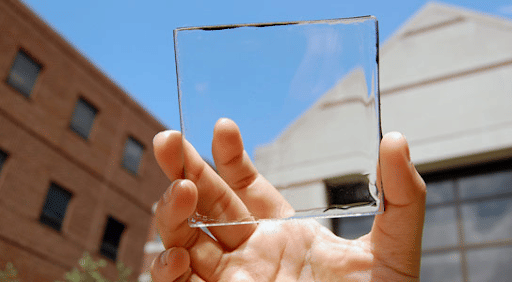

• A luminescent solar concentrator (LSC) is a clear plastic or glass piece with a fluorescent dye or quantum dots inserted or painted on it.
• The dye absorbs light and subsequently fluoresces, creating a glow that travels around the edge of the sheet via total internal reflection and is absorbed by a narrow solar cell.
• This is a promising technology because it combines a huge collecting area of nearly clear glass with a tiny area of pricey solar cells to create a large collecting area.
• The luminescent materials can be tailored to absorb at specific wavelengths (such as ultraviolet UV) and then re-emit at longer wavelengths, where silicon absorption is best.

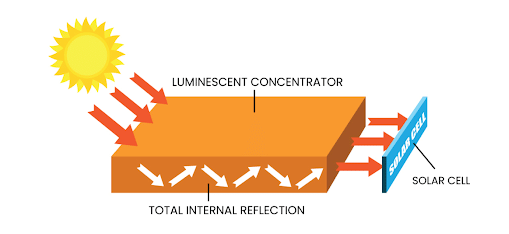

Luminescent Solar Concentrators - Working

• In its most basic form, a typical LSC consists of a waveguide made of polymer or glass, with luminophores scattered throughout the sheet or coated on top.
• The luminophores absorb direct or diffuse sunlight that penetrates the top surface of the matrix, which is then isotropically re-emitted at a longer wavelength.
• Through total internal reflection, the generated light is steered towards the sheet's perimeter, where it is finally transformed into electricity by photovoltaic (PV) cells mounted along the sides.
• The LSC device achieves light concentration because the total LSC area exposed to sunlight is greater than the surface area of the cells put on the sidewalls.
• This type of light concentration is low-cost and passive, as it does not require any bulky tracking equipment.
• Furthermore, the LSC device has the advantage of being less susceptible to shade than conventional solar cells due to its intrinsic capacity to indirectly illuminate the linked PV cells.

Luminescent Solar Concentrators - Materials Used

• Plastics, glass, or organic solvents can be utilized as the LSC matrix material between the plastic or glass sheets.
• Because of their optical and operational qualities, as well as their manufacturability, polymeric materials are the optimum choice for these applications.
• Polymethyl methacrylate and polystyrene are the most commonly utilized materials for this purpose.
• Organic dyes containing rare earth metal ions and quantum dots, the latter of which is the most extensively used because of its high quantum yield, the convenience of usage, and low cost, can be utilized as a luminous material.

Luminescent Solar Concentrators - Advantages

• Higher Efficiency: They allow the short-wave radiation section of the solar spectrum to be shifted to a longer wavelength range. Solar cells have a higher conversion efficiency inside this range.
• Use of Diffuse solar Radiation: They capture both direct and diffused light to get a high optical concentration of sunlight in stationary devices.
• Prevention from Overheating: It prevents the overheating of solar cells.
• Efficiency: Using the LSC in conjunction with a PV system to generate electricity can improve overall efficiency.
• Small-area photovoltaic cells allow more efficient and costlier solar cells to be used. Solar cells convert light energy into electricity.

Luminescent Solar Concentrators - Problems

• While the light bounces about in the plastic, it is occasionally absorbed by the dye molecules and expelled as heat.
• As a result, this energy never reaches the solar cells.
• The dyes' effective life is far less than that of the solar cells, necessitating the rebuilding of the units to maintain their efficiency over time.

Luminescent Solar Concentrators - Uses

• Urban Infrastructure: Using existing artificial surfaces, solar energy structures consisting of LSCs and PV systems can be integrated into urban infrastructure.
• Integrated Photovoltaics: Translucent architectural structures, such as windows, stained glass, and cornices, can be used as building-integrated photovoltaics.
• Electronic Devices: The integration of these technologies into mobile electronic devices and fabrics (for example, backpacks) appears to be promising.
• A construction consisting of a luminous solar concentrator and a solar cell will be less expensive than a pure solar cell with the same efficiency.

Conclusion

The LSC is a device with a lot of design flexibility, with a lot of different forms and colors to choose from. LSCs were first designed with parallel flat, thin layers of interchanging luminous and transparent materials, positioned to receive incoming radiation on one side and produce focused radiation on the other. Normally, the device would focus concentrated radiation onto solar cells' surfaces to generate electricity. The devices' main challenge is to improve their photon-to-electron conversion efficiency. Several labs are striving to increase the LSC device's efficiency and lifetime, with the ultimate goal of commercializing the devices in a few years.

FAQs

Question: What are Luminescent Solar Concentrators (LSC)?

Question: How do LSCs work?

Question: What materials are used in LSCs?

Question: What are the advantages of using LSCs?

Question: Are there any challenges associated with LSCs?

MCQs

1. What is the primary function of luminescent materials in LSCs?

A) Reflect light away from the surface

B) Absorb and re-emit light at longer wavelengths

C) Generate electricity directly

D) Block ultraviolet radiation only

2. LSCs can be effectively integrated into:

A) Road pavements

B) Building windows and facades

C) High-temperature furnaces

D) Underwater lighting systems

3. Which of the following materials is commonly used as a luminescent component in LSCs?

A) Copper wires

B) Organic dyes and quantum dots

C) Steel rods

D) Ceramic tiles

4. One of the key advantages of LSCs is their ability to:

A) Operate only in direct sunlight

B) Capture diffuse sunlight effectively

C) Generate electricity during the night

D) Function without any luminescent materials

5. The primary challenge associated with LSCs is:

A) Their inability to function in cloudy conditions

B) Limited efficiency and material stability issues

C) High manufacturing costs compared to traditional panels

D) Lack of research and development in the field

GS Mains Questions and Model Answers

Q1: Explain the working principle of Luminescent Solar Concentrators (LSC) and their potential applications in solar energy generation.

Answer: Luminescent Solar Concentrators (LSCs) operate by using luminescent materials embedded in a transparent matrix, such as glass or polymer, to absorb sunlight and re-emit it at longer wavelengths. This emitted light is internally reflected within the matrix towards the edges, where photovoltaic (PV) cells convert it into electricity. The key advantage of LSCs is their ability to capture both direct and diffuse sunlight, making them suitable for diverse lighting conditions. Potential applications of LSCs include integration into building windows, facades, and urban environments, providing aesthetic solar energy solutions. They can also be used in lightweight and flexible solar devices, expanding the reach of renewable energy to unconventional surfaces and structures.

Q2: Discuss the advantages and limitations of using Luminescent Solar Concentrators in renewable energy solutions.

Answer: Luminescent Solar Concentrators (LSCs) offer several advantages, including lower manufacturing costs compared to traditional solar panels, aesthetic integration into building designs, and effective capture of diffuse sunlight. This makes LSCs suitable for urban settings, where conventional solar panels may not be viable. Additionally, their lightweight and flexible nature allow for innovative applications. However, LSCs face limitations such as lower overall efficiency, potential degradation of luminescent materials over time, and challenges related to material stability and light-guiding technologies. Research and development are ongoing to improve their performance, scalability, and long-term viability as part of the global shift towards renewable energy.

Q3: Analyze the potential impact of integrating Luminescent Solar Concentrators into building architecture on energy sustainability.

Answer: Integrating Luminescent Solar Concentrators (LSCs) into building architecture can have a significant impact on energy sustainability. LSCs can be incorporated into windows, facades, and rooftops, providing a dual-purpose solution of energy generation and aesthetic appeal. By capturing both direct and diffuse sunlight, they can contribute to building energy needs even in less sunny conditions. This integration reduces reliance on conventional energy sources, promotes the use of renewable energy, and contributes to reducing greenhouse gas emissions. Moreover, LSCs' compatibility with urban environments offers a scalable solution for sustainable cities. However, their long-term impact will depend on improvements in efficiency, durability, and cost-effectiveness, ensuring widespread adoption.

Previous Year Questions on Luminescent Solar Concentrators (LSC)

1. UPSC CSE - 2020

Question: "Discuss the role of new solar technologies such as Luminescent Solar Concentrators (LSC) in promoting sustainable energy solutions."

Answer: New solar technologies like Luminescent Solar Concentrators (LSC) play a critical role in promoting sustainable energy solutions by enhancing the efficiency and versatility of solar energy capture. LSCs use luminescent materials to absorb and re-emit sunlight at longer wavelengths, directing it to the edges of the device where photovoltaic cells generate electricity. This technology allows for the integration of solar energy systems into building windows, facades, and unconventional surfaces, providing both functional and aesthetic benefits. LSCs capture diffuse sunlight, making them effective in diverse lighting conditions and suitable for urban environments. While challenges such as limited efficiency and material stability exist, ongoing research aims to optimize their performance and make solar energy more accessible and widespread.

2. UPSC CSE - 2019

Question: "Evaluate the challenges and opportunities associated with the adoption of Luminescent Solar Concentrators in renewable energy projects."

Answer: The adoption of Luminescent Solar Concentrators (LSCs) presents both challenges and opportunities in the field of renewable energy. On the one hand, LSCs offer opportunities to integrate solar energy systems into building architecture, providing aesthetic and functional energy solutions. Their ability to capture diffuse sunlight makes them suitable for urban environments and less-than-ideal solar conditions. LSCs are also cost-effective to manufacture and can be used in lightweight, flexible solar devices. On the other hand, challenges include limited efficiency compared to traditional photovoltaic panels, potential degradation of luminescent materials, and the need for improved material stability and light-guiding technologies. Addressing these challenges through research and innovation will be crucial to unlocking the full potential of LSCs in sustainable energy projects.
