Drainage systems, often known as river systems, are the patterns generated by streams, rivers, and lakes within a drainage basin in geomorphology. They are influenced by the land's topography, whether an area is dominated by hard or soft rocks, and the land's gradient. This article will explain about Drainage Systems which will be helpful in Geography preparation for the UPSC Civil Service exam.

What exactly is the Drainage System?

• The term drainage refers to a region's river system. A drainage basin is an area drained by a single river system.
• A closer look at a map reveals that any elevated feature, such as a mountain or upland, divides two drainage basins. A water divide is a type of upland.
• River basins are the catchments of great rivers, whereas watersheds are the catchments of minor rivulets and rills.
• However, there is a distinction to be made between a river basin and a watershed.
• The Indian drainage system may be classified into several categories.
• It may be divided into two groups based on the discharge of water (orientations to the sea):
  • Arabian Sea Drainage
  • Bay of Bengal Drainage
• Apart from their origins in India's two primary physiographic areas, the Himalayan and Peninsular rivers differ in a variety of ways.
• The majority of Himalayan rivers are perennial. It implies they have access to water all year.
• These rivers are fed by rain as well as melting snow from the high mountains.
• Since their flow is dependent on rainfall, a vast number of Peninsular rivers are seasonal.
• Even the largest rivers have restricted the flow of water in their courses during the dry season.

Drainage Pattern

• A drainage pattern is a system of surface water flow developed over time by stream erosion.
• The pattern generated by stream erosion over time reveals elements of the many types of rocks and geologic formations found in a stream-drained landscape region.
• The drainage pattern is governed by the topography of the land, the gradient, and whether a particular site is dominated by hard or soft rocks.
• Drainage patterns are classified according to their shape and texture.
• Their shape or pattern changes as a function of the local topography and geology.

Types of Drainage Patterns

Dendritic Drainage Pattern

• It is the most common kind and has a branching structure similar to tree roots.
• The dendritic pattern forms as the river channel follows the terrain's slope.
• The pattern appears in regions where the rock underneath the stream has no discernible structure and may be eroded in all directions equally easily.
• At sharp angles (less than 90°), tributaries join bigger streams.
• For example, the rivers of the northern plains, such as the Indus, Ganga, and the Brahmaputra.

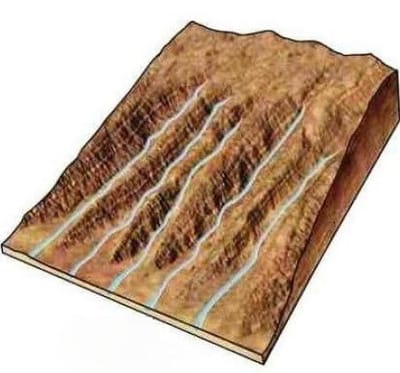

Parallel Drainage Pattern

• It grows in areas with parallel, elongated landforms and a steep slope to the surface.
• Following the slope of the surface, tributary streams tend to expand out in a parallel-like pattern.
• E.g. Godavari, Kaveri, Krishna, and Tungabhadra rivers originate in the Western Ghats.

Rectangular Drainage Pattern

• The rectangular drainage pattern is prevalent in faulted areas.
• It grows in tightly packed rocky ground.
• Streams choose the path of least resistance and hence congregate in areas with the weakest exposed rock.
• The tributary streams curve sharply and enter the mainstream at steep angles.
• E.g. Chambal, Betwa, and Ken streams located in the Vindhya mountain range.

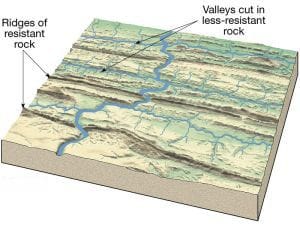

Trellis Drainage Pattern

• Trellis drainage forms in folded terrain when hard and soft rocks run parallel to one another.
• The primary course of the stream is located in valleys formed by down-turned folds known as synclines.
• When principal tributaries of major rivers flow parallel to one another and secondary streams join them at right angles, this pattern is generated.
• For example, the rivers of the Himalayan region's upper reaches, such as the Indus, Ganga, and the Brahmaputra.

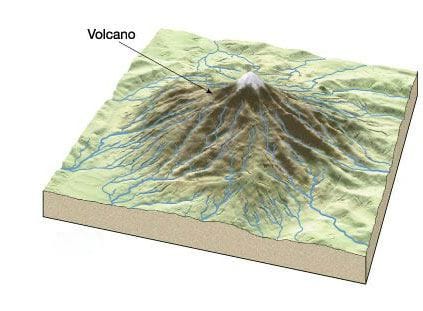

Radial Drainage Pattern

• Radial drainage patterns form around a central high point and are typical in conically shaped objects such as volcanoes.
• The drainage pattern is called 'radial' when rivers begin on a hill and flow in all directions.
• For example, the rivers that flow from the Amarkantak range, such as the Narmada and Son (a tributary of Ganga).

Centripetal Drainage Pattern

• As streams travel toward a central depression, it is the polar opposite of the radial.
• During the wetter seasons, these streams nourish ephemeral lakes, which evaporate during the dry seasons.
• Salt flats can form in these dry lake beds when salt dissolved in lake water precipitates out of solution and is left behind after the water evaporates.
• For example, in Manipur, there is Loktak Lake.

The Himalayan Rivers

• The Indus, Ganga, and the Brahmaputra are the three great Himalayan rivers.
• These rivers are lengthy, with several big and significant tributaries.
• A river system is made up of a river and its tributaries.
• This system's rivers are supplied by both snowmelt and precipitation, making them perpetual.
• They generate depositional features such as flat valleys, oxbow lakes, flood plains, braided channels, and deltas near the river mouth when they enter the plains.

*To read more about this topic, click this link Himalayan Drainage system

Indus River system

• It is one of the world's major river basins.
• It is also known as the Sindhu and is India's westernmost Himalayan river.
• It flows from a glacier at Bokhar Chu in the Kailash Mountain range in Tibet.
• It is known as 'Singi Khamban' or Lion's mouth, in Tibet.
• In India, the Indus exclusively runs through the Leh district of the Union Territory of Ladakh.
• Sutlej, Ravi, Jhelum, Chenab, and Beas are all significant tributaries.

*To read more about this topic, click this link Indus River System

The Ganga System

• It originates in the Gangotri glacier at Gaumukh (3,900 m) in Uttarakhand and is known as Bhagirathi.
• The Bhagirathi meets the Alaknanda at Devprayag, where it becomes the Ganga.
• At Haridwar, the Ganga reaches the Northern Plains.
• The Ganga River runs through Uttarakhand, Uttar Pradesh, Bihar, and West Bengal.
• The main right bank tributary is Son, while the major left bank tributaries are Ramganga, Gomati, Ghaghara, Gandak, Kosi, and Mahananda.
• The Yamuna is the Ganga's westernmost and longest tributary, with its headwaters in the Yamunotri glacier.
• The Ganga River empties into the Bay of Bengal at Sagar Island.

*To read more about this topic, click this link The Ganga System

The Brahmaputra System

• It is one of the world's biggest rivers, with its source in the Chemayungdung glacier (Kailash range) near Mansarovar Lake.
• It is known as the Tsangpo in southern Tibet, which means "the cleanser."
• The river is known as Siang or Dihang as it emerges from the Himalayan foothills.
• It enters India west of the town of Sadiya in Arunachal Pradesh.
• Dibang or Sikang, Lohit, Burhi Dihing, and Dhansari are its primary left bank tributaries.
• The Subansiri, Kameng, Manas, and Sankosh rivers are important right-bank tributaries.
• In Bangladesh, it joins the Padma River, which flows into the Bay of Bengal.

*To read more about this topic, click this link The Brahmaputra System

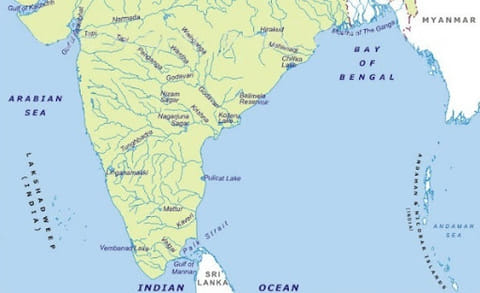

The Peninsular Drainage System

• The peninsular rivers are distinguished by their stable course, lack of meanders, and nonperennial water flow.
• The drainage system predates the Himalayan drainage system.
• The Western Ghats, which run parallel to the western coast, serve as a water divide between the major Peninsular rivers, which discharge their water into the Bay of Bengal, and smaller rivulets that enter the Arabian Sea.
• Except for the Narmada and Tapi which run across the rift valley, most of the Peninsular rivers run from west to east.
• The Mahanadi, Godavari, Krishna, and Kaveri are the Peninsular drainage's other main river systems.

*To read more about this topic, click this link The Peninsular Drainage System

Conclusion

A drainage system, in the context of geomorphology and hydrology, refers to the pattern or network through which water flows across a particular area, ultimately discharging into a single channel, series of channels, or a body of water such as a sea or ocean. It encompasses all the surface water from rain runoff, snowmelt, and nearby streams that run off rooftops and roads into trunks and drainage networks.

FAQs

Question: What is a drainage system in geography?

Question: What are the main types of drainage systems?

Question: What factors influence the formation of drainage systems?

Question: How does a dendritic drainage pattern form?

Question: Why is understanding drainage systems important?

MCQs

1. The dendritic drainage pattern resembles:

A) A radial shape

B) The branches of a tree

C) A rectangular grid

D) A spiral arrangement

2. Which drainage pattern forms around a central elevated point?

A) Dendritic

B) Trellis

C) Radial

D) Rectangular

3. Trellis drainage patterns are common in areas with:

A) Uniform rock resistance

B) Highly folded or tilted rock layers

C) Circular hilltops

D) Volcanic formations

4. The main factor influencing the formation of drainage patterns is:

A) Wind speed

B) Rock structure and slope

C) Human intervention

D) Soil temperature

5. Rectangular drainage patterns are characterized by:

A) Stream channels forming right-angle bends

B) A random network of streams

C) Streams flowing from a single point

D) A circular arrangement of rivers

GS Mains Questions and Model Answers

Q1: Explain the various types of drainage systems found in India and their significance in water resource management.

Answer: India exhibits diverse drainage systems, including dendritic, trellis, radial, and rectangular patterns, shaped by its complex geology and topography. Dendritic patterns, resembling tree branches, are common in the northern plains and Deccan plateau. Trellis drainage forms in areas with folded rock layers, such as the Western Ghats. Radial patterns occur around volcanic formations like Mount Abu. Understanding these systems is crucial for water resource management, flood control, and irrigation planning. Effective management of river basins and drainage networks ensures sustainable water supply and reduces the risk of flooding and erosion.

Q2: Analyze the factors influencing the development of different drainage patterns and their impact on regional geography.

Answer: The development of drainage patterns is influenced by factors such as topography, slope, rock structure, and climate. For example, dendritic patterns form over uniform rock types, while trellis patterns develop in regions with folded strata. Radial drainage occurs around elevated features like mountains, and rectangular patterns are shaped by faulted or jointed rock. These patterns impact regional geography by determining water flow paths, soil erosion, sediment transport, and the availability of water resources. They also influence agricultural practices, settlement distribution, and ecosystem health.

Q3: Discuss the importance of studying drainage systems in the context of environmental planning and disaster management.

Answer: Studying drainage systems is vital for effective environmental planning and disaster management. Understanding water flow patterns and river behavior helps predict flooding, manage river basins, and design flood control measures. Drainage analysis aids in identifying areas susceptible to waterlogging, erosion, and landslides. It also supports the sustainable management of water resources for agriculture, industry, and domestic use. By integrating drainage system data into planning, policymakers can mitigate the impact of natural disasters, protect ecosystems, and ensure water security.

Previous Year Questions on Drainage Systems

1. UPSC CSE 2020

Question: Evaluate the role of drainage patterns in shaping the physical geography and human activities of a region.

Answer: Drainage patterns play a crucial role in shaping a region's physical geography and influencing human activities. They determine water availability, soil fertility, and erosion patterns, directly affecting agricultural practices and settlement locations. Dendritic patterns support extensive drainage networks that provide water for irrigation and domestic use. Trellis patterns influence land use in mountainous and hilly areas. Radial and rectangular patterns affect water flow and sediment deposition, impacting regional ecosystems. Understanding drainage patterns helps in planning infrastructure, managing water resources, and mitigating flood risks, contributing to sustainable development and disaster management.

2. UPSC CSE 2019

Question: Discuss the significance of different drainage systems in flood control and river basin management.

Answer: Different drainage systems play a significant role in flood control and river basin management. Dendritic drainage allows for efficient water flow and dispersal, reducing flood risks in large basins. Trellis systems in hilly areas require careful management to prevent erosion and manage water flow through valleys. Radial drainage around elevated regions can lead to flash flooding if not properly managed. Understanding these patterns enables the design of effective flood control structures, such as embankments, reservoirs, and channels, to manage water flow. Integrated river basin management using drainage system analysis ensures sustainable water use, protects communities, and maintains ecological balance.
