Ozone Layer Depletion is the chemical destruction of the stratospheric ozone layer that is not caused by natural processes. Natural cycles constantly create and deplete ozone in the stratosphere. However, various Ozone Depleting Substances (ODS) hasten the destruction process, resulting in lower-than-normal ozone levels. Chlorofluorocarbons (CFCs), bromine-containing halons and methyl bromide, HCFCs, carbon tetrachloride (CCl4), and methyl chloroform are examples of ODSs. In this article, we will discuss Ozone Depletion which will be helpful for UPSC exam preparation.

What is Ozone Depletion?

• The gradual thinning of the earth's ozone layer in the upper atmosphere caused by the release of chemical compounds containing gaseous bromine or chlorine from industries or other human activities is known as ozone layer depletion.
• Chlorofluorocarbon, carbon tetrachloride, hydrochlorofluorocarbons, and methyl chloroform are all ozone-depleting substances containing chlorine.
• Halons, methyl bromide, and hydro bromofluorocarbons are ozone-depleting bromine-containing substances.
• The Montreal Protocol was proposed in 1987 to prohibit the use, production, and import of ozone-depleting substances and to reduce their concentration in the atmosphere in order to protect the earth's ozone layer.

Change in Equilibrium

• The influx of several substances into the atmosphere that react with ozone and destroy it has upset the equilibrium between its formation and destruction.
• The rate at which ozone is depleted is much faster than the rate at which it is formed.
• It denotes a significant decrease in the concentration of ozone in a specific region of the atmosphere, hence the name "Ozone Depletion."
• The best example of such ozone depletion is the atmosphere over Antarctica, which contains only about half of the ozone that originally existed there. Only in 1985 was the actual realisation of ozone depletion made.

Sources of Ozone Depletion

Chlorofluorocarbons (CFCs)

• CFCs are composed of chlorine, fluorine, and carbon.
• They are used as refrigerants, aerosol propellants, foaming agents in plastic manufacturing, fire extinguishing agents, solvents for cleaning electronic and metallic components, freezing foods, and so on.
• CFC is used in two-thirds as refrigerants and one-third as blowing agents in foam insulation products.
• CFCs have a wide range of applications due to properties such as non-corrosiveness, non-inflammability, low toxicity, and chemical stability, among others.
• CFCs, unlike other chemicals, cannot be removed from the atmosphere through traditional scavenging processes such as photodissociation, rain-out, and oxidation.

Nitrogen Oxides

• Nitrogen oxides are primarily produced by thermonuclear weapon explosions, industrial emissions, and agricultural fertilisers.
• Nitrous oxide (N2O) is produced from solids by the anaerobic denitrification of nitrates and the aerobic nitrification of ammonia.
• This N2O can gradually reach the stratosphere's middle layer, where it is photolytically destroyed to produce nitric oxide, which destroys ozone.

Other Substances

• Halons and HBFCs, or hydrobromo fluorocarbons containing bromine (both used in fire extinguishers) and methyl bromide (a widely used pesticide).
• Each bromine atom destroys hundreds of times the number of ozone molecules as a chlorine atom.

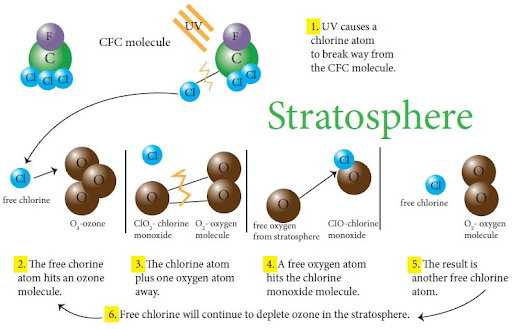

• Bromine (Br) reacts with ozone to produce bromine monoxide (BrO) and oxygen (O2).
• The BrO then reacts with chlorine monoxide (ClO) to produce oxygen (O2) and free bromine (Br) and chlorine atoms (Cl). These liberated atoms can then react with ozone.
• Particles of sulphuric acid: These particles liberate chlorine from molecular reservoirs and convert reactive nitrogen to inert forms, preventing chlorine reservoir formation.
• Carbon tetrachloride (a low-cost, highly toxic solvent).
• Methyl chloroform (a cleaning solvent for clothes and metals, as well as a propellant in a variety of consumer products such as correction fluid, dry cleaning sprays, spray adhesives).

Role of Polar Stratospheric Clouds in Ozone Depletion

• Polar stratospheric clouds (PSCs) play important roles in stratospheric ozone depletion at high latitudes during winter and spring (e.g., the Antarctic ozone hole).
• PSC particles serve as sites for heterogeneous reactions that convert stable chlorine reservoir species to radicals that catalytically destroy ozone.
• Depletion of the ozone layer is due to strong polar fronts, presence of polar stratospheric clouds and of chlorofluorocarbons.
• PSCs were long regarded as oddities with no real significance. However, Type I clouds are now recognised as sites of harmful stratospheric ozone destruction over Antarctica and the Arctic.
• Their surfaces serve as catalysts, converting less dangerous forms of man-made chlorine into active free radicals (for example ClO, chlorine monoxide).
• In a series of chain reactions, these radicals destroy many ozone molecules as spring sunlight returns.
• Cloud formation is doubly damaging because it removes gaseous nitric acid from the stratosphere, which would otherwise combine with ClO to form less reactive forms of chlorine.

*For detailed notes of this topic, check this link Role of Polar Stratospheric Clouds in Ozone Depletion

Why is Ozone Depletion Predominant at the Antarctic?

• The Antarctic stratosphere is significantly colder. The low temperature allows Polar stratospheric Clouds (PSCs) to form below 20 km.
• Ozone absorbs sunlight, causing the typical rise in temperature with altitude in the stratosphere. When ozone levels fall, the air becomes cooler, which contributes to the formation of PSCs and the stabilisation of the vortex.
• The vortex is a ring of rapidly circulating air that keeps ozone depletion in the Antarctic region to a minimum.
• Another factor is the Antarctic vortex's longetivity, which increases the likelihood of ozone depletion.
• In fact, the vortex persists throughout the polar winter, well into midspring, whereas the Arctic vortex disintegrates by the time the polar spring (March-April) arrives.
• Typical winter events that contribute to ozone depletion over Antarctica.
  • In June, the Antarctic winter begins, the vortex forms, and the temperature drops sufficiently for clouds to form.
  • During the months of July and August, PSCs denitrify and dehydrate the stratosphere via precipitation, hydrochloric acid and chlorine nitrate react on cloud surfaces to form free chlorine, and winter temperatures reach their lowest point.
  • As the austral spring begins in September, sunlight returns to the vortex's core, and PSCs vanish due to rising temperatures. Ozone is destroyed by the ClO-ClO and ClO-BrO catalystic cycles.
  • The lowest ozone levels are reached in October.
  • In November, the Polar Vortex weakens, ozone-rich air from the mid-latitudes replenishes the Antarctic stratosphere, and ozone-depleted air spreads across the southern hemisphere.

Arctic Ozone Depletion

• Ozone depletion is also becoming more visible in the Arctic.
• The Arctic Ozone Depletion that swept across the United Kingdom in March 1996 was the greatest ozone depletion ever seen in the northern hemisphere.
• Scientists believe it was caused in the past by a dramatic cooling of the upper atmosphere in the northern latitudes.
• Since the winter of 1992, the northern hemisphere's ozone depletion has been steadily increasing.
• Aside from the accumulation of ozone-depleting chemicals, the main cause is the rising cold temperature in the arctic stratosphere, which promotes the formation of PSCs.

Environmental Effects of Ozone Depletion

Effects on human and animal health

• Potential risks include an increase in the incidence and morbidity of eye diseases, skin cancer, and infectious diseases.
• UV radiation has been shown in experimental systems to damage the cornea and lens of the eye.
• UV-B radiations are the primary risk factor for the development of non-melanoma skin cancer (NMSC) in susceptible (light-skinned) populations.

Effects on Terrestrial Plants

• UV-B radiation has an impact on the psychological and developmental processes of plants.
• UV-B-induced indirect changes such as changes in plant form, biomass allocation to different parts of the plant, timing of developmental phases, and second metabolism may be as important as, if not more important than, the damaging effects of UV-B.

Effects on Aquatic Ecosystems

• Solar UV-B radiation has been shown to affect both orientation mechanisms and motility in phytoplankton, resulting in lower survival rates for these organisms.
• Solar UV-B radiation has been found to cause developmental damage in fish, shrimp, crab, amphibians, and other animals.

Effects on Bio-geochemical Cycles

• UVB radiation increases may have an impact on terrestrial and aquatic biogeochemical cycles, altering both the sources and sinks of greenhouse gases and chemically important trace gases (e.g., carbon dioxide, carbon monoxide, carbonyl sulfide, ozone, and possibly other gases).

Effects on Air Quality

• Reduced stratospheric ozone and increased UV-B radiation penetrating the lower atmosphere result in higher photodissociation rates of key trace gases that control the chemical reactivity of the troposphere.
• This can increase both the production and destruction of ozone (O3) and related oxidants like hydrogen peroxide (H2O2), which are known to be harmful to human health, terrestrial plants, and outdoor materials.

Effects on Materials

• Solar UV radiation has a negative impact on synthetic polymers, naturally occurring bio-polymers, and some other commercially important materials.
• Any increase in solar UV-B content as a result of partial ozone depletion will thus accelerate photogradation rates of these materials, limiting their outdoor life.

*For detailed notes of this topic, check this link Environmental Effects of Ozone Depletion

How is Ozone Measured?

• The instruments and techniques used to measure ozone are numerous. Some examples include the Dobson spectrophotometer, the M83 filter ozonometer, and the total ozone mapping spectrometer (TOMS) in the Nimbus-7 satellite.
• The Umheher technique - The Dobson unit (named after the pioneering atmospheric physical Gordon Dobson) is the thickness of the ozone column (compressed at Standard Temperature and Pressure (STP)) in milli-centimetres and is the most commonly used measure of total ozone abundance.
• One Dobson unit equals 2.69x1020 molecules per square metre at STP.

Initiatives to Tackle Ozone Depletion

Vienna Convention

• The Vienna Convention for the Protection of the Ozone Layer, signed in 1985, was an international agreement in which United Nations members recognised the critical importance of preventing stratospheric ozone layer damage.
• On March 18, 1991, India became a signatory to the Vienna Convention for the Protection of the Ozone Layer.

Montreal Protocol

• The Montreal Protocol on Substances that Deplete the Ozone Layer was negotiated in 1987, and subsequent amendments were negotiated to control the consumption and production of anthropogenic (ODSs) and some hydrofluorocarbons (HFCs).
• On June 19, 1992, India became a party to the Montreal Protocol on substances that deplete the ozone layer.

Kigali Amendment

• The adoption of the 2016 Kigali Amendment to the Montreal Protocol will phase down the production and consumption of some HFCs, avoiding much of the projected global increase and associated climate change.

EU Regulation

• EU legislation on ozone-depleting substances is among the strictest and most advanced in the world.
• The EU has not only implemented the Montreal Protocol through a series of regulations, but has frequently phased out dangerous substances faster than required.
• The EU Ozone Regulation establishes licencing requirements for all ozone-depleting substance exports and imports, and it regulates and monitors not only substances covered by the Montreal Protocol (over 90 chemicals), but also some that are not (five new substances).

Regulations in India for Safe Use of Hydrocarbons as Non-ODS Alternatives

• Non-ODS alternatives for aerosols, foam-blowing, and refrigeration include hydrocarbons such as isobutane and cyclopentane.
• In India, petroleum laws govern the safe use of hydrocarbons.
• The Petroleum Act of 1934 and the Petroleum Rules of 1976 govern the handling of various petroleum products.
• The latter also specifies the licencing requirements for hydrocarbon handling.
• The 1981 Gas Cylinder Rules govern the filling, possession, import, and transportation of cylinders.

Conclusion

The ozone layer, which is 15 miles above the Earth's surface, protects life on the planet by absorbing the sun's most powerful ultraviolet radiation. When the ozone layer thins (depletes), more UV light reaches Earth than is normally recorded, raising the global temperature and increasing the risk of sunburn and skin cancer. The majority of ozone is found high in the atmosphere, between 10 and 40 kilometres above the Earth's surface. This region is known as the stratosphere, and it contains approximately 90% of the ozone in the atmosphere.

FAQs

MCQs

1. What substance is primarily responsible for ozone depletion?

A) Carbon dioxide
B) Methane
C) Chlorofluorocarbons (CFCs)
D) Nitrogen oxides

2. Which international agreement aims to reduce ozone-depleting substances?

A) Kyoto Protocol
B) Paris Agreement
C) Montreal Protocol
D) Basel Convention

3. What is one of the health effects of increased UV radiation due to ozone depletion?

A) Improved vision
B) Decreased skin cancer risk
C) Increased incidence of skin cancer
D) Strengthened immune system

4. How does ozone depletion affect marine ecosystems?

A) Increases fish populations
B) Disrupts phytoplankton growth
C) Improves coral health
D) Enhances biodiversity

5. What role do microorganisms play in the context of ozone depletion?

A) They produce CFCs
B) They deplete ozone
C) They can help restore the ozone layer
D) They have no role

GS Mains Questions and Model Answers

Q1: Analyze the causes and consequences of ozone depletion. How does it impact human health and the environment?

Answer: Ozone depletion is primarily caused by the release of ozone-depleting substances, especially chlorofluorocarbons (CFCs) and halons. These substances break down ozone molecules in the stratosphere, leading to thinning of the ozone layer. The consequences of ozone depletion include increased ultraviolet (UV) radiation reaching the Earth's surface, which can result in a higher incidence of skin cancers, cataracts, and weakened immune responses in humans. Environmentally, increased UV radiation can disrupt ecosystems, particularly affecting marine life by harming phytoplankton and reducing crop yields due to impacts on plant growth. The interconnectedness of human health and environmental stability underscores the urgency of addressing ozone depletion.

Q2: Evaluate the effectiveness of international efforts to combat ozone depletion. What has been achieved since the implementation of the Montreal Protocol?

Answer: International efforts to combat ozone depletion, particularly through the Montreal Protocol, have been highly effective. Since its implementation, there has been a significant reduction in the production and consumption of ozone-depleting substances globally. This has led to observable signs of recovery in the ozone layer, with projections indicating a return to pre-1980 levels by the middle of the 21st century. The success of the Montreal Protocol serves as a model for international cooperation in addressing global environmental challenges, emphasizing the importance of regulatory frameworks and scientific research in achieving sustainability goals.

Q3: Discuss the implications of ozone layer recovery for climate change and global warming. How are these issues interconnected?

Answer: The recovery of the ozone layer has significant implications for climate change and global warming. Ozone-depleting substances are also potent greenhouse gases, and their phase-out has contributed to mitigating climate change. As the ozone layer recovers, there is potential for reducing additional warming effects associated with these substances. Furthermore, the successful collaboration seen in addressing ozone depletion demonstrates the potential for similar global efforts to tackle climate change, emphasizing the need for integrated approaches to environmental policy that consider both ozone recovery and greenhouse gas emissions reduction.

Previous Year Questions on Ozone Depletion

1. UPSC CSE Prelims 2021:

Question: What chemical is primarily responsible for ozone depletion?

A) Carbon dioxide
B) Methane
C) Chlorofluorocarbons (CFCs)
D) Nitrogen oxides

Answer: (C)

Explanation: Chlorofluorocarbons (CFCs) are the primary substances responsible for ozone depletion.

2. UPSC CSE Mains 2020 (GS Paper 3):

Question: "Discuss the effectiveness of biosparging as a technique for environmental remediation. What are its main challenges?"

Answer: Biosparging is effective for environmental remediation as it utilizes natural processes to degrade organic contaminants in groundwater, leading to cost-effective and less disruptive cleanup. However, challenges include its limited effectiveness against certain pollutants and the requirement for favorable site conditions. Addressing these challenges requires comprehensive site assessments and potential complementary remediation methods to enhance overall effectiveness.
