For soil decontamination and rejuvenation of polluted lands, bioremediation as a sustainable alternative to chemical-physical procedures is an optimal choice. Ex Situ Bioremediation is the process of removing contaminated material from its natural environment and treating it in a different location. When the material is removed from the environment, it can be treated using different techniques namely: the biopiles, bioreactors, land farming, and composting. This article will explain to you the Ex-situ Bioremediation Techniques which will be helpful in preparing the Environment syllabus for the UPSC Civil Service exam.

Ex-situ Bioremediation - Concept

• Ex-situ bioremediation is a biological procedure in which excavated soil is placed in a lined above-ground treatment area and aerated after processing to help the indigenous microbial population degrade organic pollutants.
• Organic pollutants such as petroleum hydrocarbon mixtures, polycyclic aromatic hydrocarbons (PAH), phenols, cresols, and some pesticides can be used as a source of carbon and energy by specific microorganisms under aerobic circumstances, and then degraded to carbon dioxide and water.
• It's rare to have to add microbial populations, but it's common to need to assess nutrient requirements and supplement the soil's basic nutrients and organic substrate if any of these elements are insufficient or absent.
• To allow the microbial population to grow cultures capable of sustaining deterioration, oxygen (through the introduction of air) is required.

Ex Situ Bioremediation - Contaminants Treated

Ex-situ bioremediation can treat a variety of hydrocarbon pollutants, including but not limited to:

• Hydrocarbons in general
• Kerosene
• Kerosene
• Cresols
• Polycyclic aromatic hydrocarbons (PAHs)
• Organic molecules that are semi-volatile
• Hydrocarbons from the diesel engine range
• Lubricating oils
• Aliphatics with a straight chain
• Non-chlorinated hydrocarbons with carbon chain lengths of C6 to C14 are easily treated, while non-chlorinated hydrocarbons with carbon chain lengths of C15-C32 can be treated but take longer to break down.
• Chlorinated hydrocarbons and other more complicated chains can be degraded, but only after a thorough assessment and analysis.

Ex Situ Bioremediation Techniques

Landfarming

• Land farming is the most basic method of bioremediation.
• Contaminated soils are blended with soil amendments like bulking agents and fertilizers before being tilled into the ground.
• They are excavated and spread out in layers of around 0.3m thickness on a lined treatment area inland farming.
• Periodic flipping of the bed and the addition of nutrients can help with bioremediation.
• Microbiological and oxidative mechanisms degrade, convert, and immobilize contaminants.
• The rate of pollutant degradation is optimized by controlling soil conditions.
• Moisture content, aeration frequency, and pH are all variables that can be modified.
• Landfarming techniques require large areas and are not generally viable for small sites due to the limiting thickness of soil layers (0.3m), but they can be the cheapest kind of bioremediation.

Biopiles

• A biopile is a type of ex situ treatment that uses biological processes to transform pollutants into low-toxic byproducts.
• It is often used to lower petroleum component concentrations in soils by utilizing the bioremediation process. Biopiles are a type of remediation system that is used for a short period of time.
• To maximize and manage the pace of biodegradation, excavated soil or silt is piled over an impermeable base or pad with aeration.
• Pads are often designed with a cover and sufficient drainage to manage precipitation exposure, as well as probes to monitor temperature, moisture content, and pollutant concentrations.
• Depending on the site's qualities and regulatory requirements, optional equipment may include a moisture addition system, leachate collection system, and off-gas treatment.

*To know more about the topic, click this link Biopiles

Bioreactors

• Any manufactured equipment or system that supports a biologically active environment is referred to as a bioreactor.
• The bioreactor approach is an ex-situ biochemical processing system that utilizes microbes to remove contaminants from wastewater or pumped groundwater, as well as the solid and liquid (slurry) stages of contaminated soil treatment.
• This process might be aerobic or anaerobic in nature.
• These bioreactors are typically cylindrical in shape, with sizes ranging from liters to cubic meters, and are frequently composed of stainless steel.
• Slurry bioreactors are one of the most highly constructed bioremediation systems available, as well as one of the most effective ex situ solutions for treating polluted soils with resistant contaminants in a controlled setting.
• The proper operation of a slurry bioreactor is dependent on the presence of balanced suspension, aeration, and mixing conditions.

*To know more about the topic, click this link Bioreactors

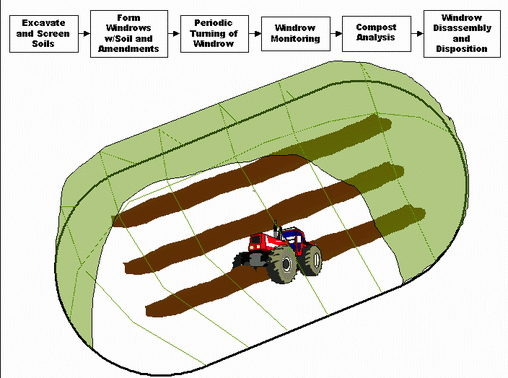

Composting

• The employment of a biological system of microorganisms in a mature, cured compost to adsorb or break down pollutants in water or soil is known as compost bioremediation.
• Aerated static pile composting (compost is formed into heaps and aerated with blowers or vacuum pumps) and windrow composting (compost is deposited in long piles (windrows) and occasionally mixed with mobility equipment) are the two most frequent composting methods.
• Windrow composting is often thought to be the most cost-effective composting method, however, it may also produce the greatest fugitive emissions.
• In bioremediation, compost is referred to as "tailored" or "designed" compost since it is prepared specifically to treat certain toxins at specified locations.
• Addition of Bulking Agents: Excavated contaminated soil is combined with bulking agents and organic amendments including wood chips, hay, manure, and vegetable (e.g., potato) wastes.
• Consumption Of Contaminants: Contaminants in soils, ground and surface waters, and the air are consumed by microorganisms.
• Digestion Of Contaminants: Contaminants are digested, metabolized, and converted into humus and inert byproducts like carbon dioxide, water, and salts.
• Successful Degradation: Many types of pollutants, including chlorinated and nonchlorinated hydrocarbons, wood-preserving chemicals, solvents, heavy metals, pesticides, petroleum products, and explosives, have been successfully degraded or altered using compost bioremediation.
• Any remediation project's ultimate purpose is to return the land to its pre-contamination state, which often include revegetation to support the treated soil.
• Compost contributes to this goal by encouraging plant development in addition to lowering pollutant levels.
• Compost serves as a soil conditioner as well as a source of nutrients for a wide range of plants.

Ex situ Bioremediation - Advantages

• Treatment of Wide Range Of Pollutants: Ex situ bioremediation techniques can treat a wider range of pollutants and soil types than in situ techniques and are faster and easier to regulate.
• More Certainty: Because of the ability to integrate, screen, and continually mix the soil, there is more certainty about treatment homogeneity.
• No Need To Transfer A Lot of Contaminants: We don't need to transfer a lot of polluted soil or water around and set up bioreactors, landfarms, or biopiles.
• Speed: The most significant benefit is speed. Because the material is often thoroughly mixed, well aerated, and sufficient nutrients are given during ex-situ bioremediation, the contaminant is typically broken down much faster than in-situ bioremediation.

Ex situ Bioremediation - Limitations

• High Speed: They necessitate soil excavation, resulting in higher expenditures and engineering for equipment.
• Risk of Exposure: There is a higher risk of material handling/worker exposure circumstances.
• Contaminant Soil Requirement: Treatment of polluted soil is usually required before and, in some cases, after the bioremediation stage.
• Spread of Toxins: If toxins are allowed to remain in the environment, rainfall can disseminate them through the soil layers and into streams, or wildlife may come into contact with them.

Conclusion

Ex situ bioremediation technology is crucial in terms of effective reduction of environmental contaminants and human health concerns because of its predictability and efficiency. In general, these biological methods are more environmentally sustainable in principle because no additional reagents (to be removed or disposed of) are added to the system, and in the case of biostimulation, the added substrates can be waste materials, achieving a dual goal of degrading both the soil pollutants and the added waste substrates. In biological systems, on the other hand, consistent performance is not always easy to achieve due to the low rates that characterize such biological processes.

FAQs

MCQs

1. What is a primary benefit of ex-situ bioremediation?

A) It is cheaper than in-situ bioremediation
B) It allows better control of environmental conditions
C) It requires less time to implement
D) It eliminates the need for microbial involvement

2. Which of the following is a commonly used ex-situ bioremediation method?

A) Phytoremediation
B) Bioreactors
C) Bioventing
D) Electrokinetic remediation

3. Which contaminant can be effectively treated using ex-situ bioremediation?

A) Radon
B) Petroleum hydrocarbons
C) Asbestos
D) Radioactive waste

4. Which of the following is NOT a type of ex-situ bioremediation?

A) Biopiles
B) Land farming
C) Composting
D) Bioaugmentation

5. What is a common challenge of ex-situ bioremediation?

A) It cannot treat heavy metals
B) It requires excavation and transportation of contaminants
C) It is slower than in-situ methods
D) It produces hazardous by-products

GS Mains Questions and Answers

Q1: Discuss the advantages and disadvantages of ex-situ bioremediation compared to in-situ bioremediation.

Answer: Ex-situ bioremediation offers several advantages over in-situ methods, including better control over environmental conditions, faster remediation rates, and the ability to treat a broader range of contaminants. However, it also has disadvantages such as higher costs associated with excavation and transportation, the need for specialized facilities, and potential disruptions to the ecosystem during the removal process. In-situ bioremediation, on the other hand, is less invasive but can be slower and less effective for certain contaminants due to the lack of controlled conditions.

Q2: Explain the role of bioreactors in ex-situ bioremediation and how they enhance the degradation of contaminants.

Answer: Bioreactors play a crucial role in ex-situ bioremediation by providing a controlled environment for the microbial degradation of contaminants. In these systems, contaminated soil or water is placed in a reactor where temperature, oxygen levels, and nutrient availability can be precisely managed to optimize microbial activity. This results in faster breakdown of organic pollutants, making bioreactors particularly useful for treating highly contaminated sites where other methods may be less effective. They are widely used for industrial wastewater treatment and in areas with high contamination levels.

Q3: Analyze the environmental implications of using ex-situ bioremediation for large-scale pollution management.

Answer: Ex-situ bioremediation is an effective method for managing large-scale pollution, particularly in situations where rapid cleanup is required. However, its environmental implications include the disruption of ecosystems during the excavation and transportation of contaminated materials. Additionally, the process requires energy and resources to transport and treat contaminants, which can have a secondary environmental impact. Despite these challenges, ex-situ bioremediation remains a valuable tool due to its effectiveness in reducing pollution levels and restoring environmental health in highly contaminated areas.

Previous Year Questions on Ex-Situ Bioremediation Techniques

1. UPSC CSE Prelims 2021:

Question: Which of the following is a commonly used ex-situ bioremediation technique?

A) Landfarming
B) In-situ flushing
C) Phytoremediation
D) Thermal desorption

Answer: A

Explanation: Landfarming is a type of ex-situ bioremediation technique where contaminated soil is excavated and spread out on a lined or prepared surface to enhance microbial degradation through exposure to oxygen and nutrients.

2. UPSC CSE Mains 2019 (GS Paper 3):

Question: What are the challenges associated with using bioremediation for environmental cleanup in India? Discuss with reference to both in-situ and ex-situ techniques.

Answer: In India, the challenges of bioremediation include the lack of infrastructure for large-scale ex-situ techniques, the high cost of excavation and transportation, and the limited availability of trained personnel. In-situ techniques face challenges such as variable site conditions, lack of proper monitoring systems, and the slow degradation rates in some environments. Both approaches require the development of a regulatory framework to manage hazardous waste effectively, as well as the need for public and private sector collaboration to address contamination on a national scale.
