A bio-pile is an ex-situ bioremediation technology that involves piling excavated soils in a treatment area that includes a leachate collection and aeration system. It is often used to lower petroleum component concentrations in soils by utilizing the bioremediation process. Biopiles are a type of remediation system that is used for a short period of time. The average working time per batch of contaminated soil is four to six months. This article will explain to you about Biopiles which will be helpful in preparing the Environment syllabus for the UPSC Civil Service Exam.

Biopiles - Concept

• A biopile is a type of ex situ treatment that uses biological processes to transform pollutants into low-toxic byproducts.
• To maximize and manage the pace of biodegradation, excavated soil or silt is piled over an impermeable base or pad with aeration.
• Pads are often designed with a cover and sufficient drainage to manage precipitation exposure, as well as probes to monitor temperature, moisture content, and pollutant concentrations.
• Depending on the site's qualities and regulatory requirements, optional equipment may include a moisture addition system, leachate collection system, and off-gas treatment.

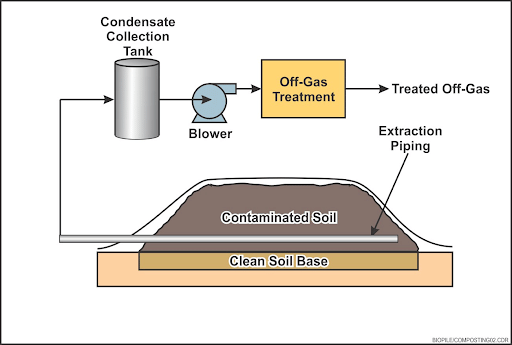

A Typical Biopile System

Biopiles - Process

• Preparation: Contaminated soil is excavated, piled up, and aerated to encourage microbial activity and aerobic decomposition of the toxins.
• To reduce the possibility of toxins seeping into uncontaminated soil, the treatment area will be covered or enclosed with an impermeable liner.
• Construction of a Biopile: A biopile is constructed and operated to encourage rapid biodegradation by maintaining optimal temperature, moisture content, aeration, and nutrient conditions.
• Involving Microorganisms:In most instances, indigenous microorganisms are responsible for degradation; nevertheless, contaminated soils can be bioaugmented if necessary.
• Increase In Temperature And Biodegradation: The temperature of the pile material rises as a result of the heat created by the biodegradation process, and the greater the temperature, the faster the degradation rate.
• Biopiles are similar to composting in that they can be modified to speed up the decomposition process.
• Biopiles, on the other hand, are not designed to reach the high thermophilic temperatures (>50 °C) required for composting.

Biopiles- Key Considerations

Dimensions

• Biopiles are usually 3–10 feet tall (H). The pile's length (L) and width (W) are both unlimited.
• Hwever, the overall size (L/W/H) is frequently determined by the equipment used to construct the pile and available space.

Foundation

• To prevent contaminated groundwater and/or leached toxins from being released back into the environment beneath the pile, biopiles are usually built with an impermeable base.
• Depending on the amount of soil to be treated, liquid barriers might be as basic as plastic sheets laid over the ground surface or as complex as a permanent concrete platform.

Moisture Content

• To establish an appropriate environment for biodegradation, water should be provided on a regular basis to maintain a moisture content of 40 to 85 percent of field capacity.
• Sprays or drip irrigation systems can be used to add water to the top of the pile.
• Moisture levels should not be so high that they entirely fill the pore space, obstructing airflow and distribution.
• If there is bound to be a lot of water, the biopile can be built with a drainage (and treatment) system to collect, treat, and discharge it.

Soil Properties

• The biopiles material should have adequate structure and porosity to allow for a high proportion of voids and efficient airflow.
• To increase permeability, bulking agents such as straw, bark, or wood chips can be added during construction.
• A soil nutrient analysis can be performed to achieve the best balance of carbon, nitrogen, and phosphorus.
• Fertilizer can be simply applied at regular intervals by dissolving it in water and dispersing it through the irrigation system.
• It's also important to keep the soil pH between 6 and 8, which is required for optimal microbial activity and biodegradation.

Aeration

• It is possible to use either passive or forceful air aeration.
• To allow air exchange, passive methods use perforated tubing or slotted pipes placed at varying heights throughout the pile with their ends protruding outside the pile.
• Wind-powered, passive turbine vents can also be added to the ventilation piping’s protruding ends.
• The use of a blower to pump air through a network of slotted pipe positioned at one or more depths to allow for proper aeration of the entire pile is known as active aeration.
• Under vacuum, air can be withdrawn or supplied under pressure.
• Because the air stream may contain large amounts of impurities, vapour treatment may be required, and a knockout system should be utilized to prevent water from entering and harming the blowers.
• Although passive aeration systems are less expensive, active aeration is recommended because it provides a more comprehensive and regulated air flow that promotes bioremediation in the pile.

Cover

• Depending on the climatic conditions at the location, an impermeable (plastic) cover may be required to cover the biopile.
• When considerable rain is expected, a cover should be applied to prevent toxins from seeping from the biopile.
• A cover may be utilized in chilly locations to keep the heat in the pile.

Biopiles - Applications

• Biopiles are employed in the treatment of organic substances that degrade aerobically, such as non halogenated volatile organic compounds and semivolatile organic compounds.
• Non-halogenated volatile organic compounds (VOCs) and fuel hydrocarbons have both been treated with biopiles.
• Pesticides, halogenated VOCs, and semivolatile organic compounds (SVOCs) can all be treated, although the procedure' efficiency varies, thus it may only be applicable to some substances within these groups.

Biopiles - Advantages

• Maintenance, Monitoring And Energy Consumption: Maintenance and monitoring are minimal, and energy consumption is often low.
• Low Cost: The cost of utilities, such as water and electricity, is often low.
• Design And implementation: Design and implementation are rather easy.
• Shorter Time Frame: Under ideal settings, treatment timeframes range from 6 months to 2 years.
• Efficiency: Organic compounds with slow biodegradation rates are effective.

Biopiles - Limitations

• Inefficient In Removing Pollutants And Radionuclides: Inorganic pollutants and radionuclides are not removed by biopiles.
• Higher Concentration: It is difficult to achieve a reduction in constituent concentrations of more than 95% and 0.1 parts per million (ppm).
• For high ingredient concentrations of more than 50,000 ppm of total petroleum hydrocarbons, it may not be very effective (TPH).
• Significant heavy metal concentrations of more than 2,500 parts per million (ppm) may inhibit microbiological development.

Conclusion

Soils contaminated with shorter-chain, more easily biodegradable petroleum hydrocarbons (such as gasoline) are treated more quickly than soils contaminated with long-chained polycyclic aromatic hydrocarbons. The time it takes to reach remedial goals is influenced by the beginning concentration of pollutants. Concentrations may be too high for biodegradation to proceed in some situations, and must be diluted by mixing in clean material, limiting the amount of contaminated soil that can be treated in a batch for a particular treatment facility size.

GS Mains Questions and Model Answers

Q1: Discuss the working mechanism and environmental significance of biopiles in soil remediation.

Answer: Biopiles are an ex-situ bioremediation technique used to treat contaminated soils, primarily those affected by petroleum hydrocarbons. The contaminated soil is excavated and arranged in piles, where conditions are optimized to enhance microbial degradation of pollutants. Key parameters like aeration, moisture, temperature, and nutrient levels are controlled to stimulate the activity of microorganisms. This method reduces pollution levels by breaking down organic contaminants into less harmful substances. Biopiles offer an environmentally friendly approach to soil remediation, providing a controlled and cost-effective solution for large-scale treatment, making them significant for environmental restoration.

Q2: What are the key advantages and challenges associated with using biopiles for remediation?

Answer: Biopiles offer several advantages, including cost-effectiveness, the ability to treat large volumes of contaminated soil, and minimal environmental impact compared to chemical methods. The process can be customized to optimize microbial degradation, making it effective for specific contaminants like petroleum hydrocarbons. However, challenges include the relatively slow pace of treatment, limitations in treating non-biodegradable contaminants, and potential constraints related to site conditions such as climate and soil composition. Additionally, high concentrations of heavy metals may hinder microbial activity, reducing the effectiveness of the treatment.

Q3: Compare biopiles with other bioremediation techniques in terms of effectiveness and application.

Answer: Biopiles, as an ex-situ technique, differ from in-situ methods like bioventing and biosparging. While biopiles involve the excavation and controlled treatment of soil, in-situ methods treat contamination directly in place. Biopiles offer greater control over environmental parameters, making them effective for large-scale projects and specific contaminants, such as petroleum hydrocarbons. However, they require excavation and transportation, which may increase costs and disrupt the site. In contrast, in-situ techniques have lower operational costs but less control over treatment conditions. The choice between biopiles and other methods depends on factors such as contaminant type, site conditions, and treatment goals.

Previous Year Questions on  Biopiles

1. UPSC CSE 2020

Question: Evaluate the role of biopiles in mitigating soil contamination caused by petroleum hydrocarbons.

Answer: Biopiles play a critical role in mitigating soil contamination caused by petroleum hydrocarbons by harnessing microbial degradation to break down pollutants. The process involves optimizing conditions like aeration, moisture, and nutrient levels to enhance microbial activity and accelerate the breakdown of hydrocarbons into less harmful compounds. Biopiles are a cost-effective and environmentally friendly method for treating large volumes of contaminated soil. While they require careful management and monitoring, their ability to reduce environmental pollutants makes them a valuable tool in soil remediation, especially for petroleum-based contamination.

2. UPSC CSE 2019

Question: Discuss the limitations and potential solutions to enhance the effectiveness of biopile remediation.

Answer: Biopile remediation faces limitations such as slow treatment times, ineffectiveness for non-biodegradable contaminants, and potential issues with high concentrations of heavy metals that inhibit microbial activity. Solutions to enhance effectiveness include using specialized microbial cultures to target specific contaminants, optimizing environmental parameters like pH and temperature, and integrating biopiles with other remediation methods, such as phytoremediation or chemical treatment. Regular monitoring and adjusting treatment conditions can further improve the degradation process, making biopiles more effective for a broader range of contaminants and environmental conditions.
