Analyzing Photocurrent and Stopping Potential Variation
This question concerns the photoelectric effect, specifically how photocurrent and stopping potential change over time when the light source's power decreases linearly.
Photocurrent Behavior
- The photocurrent ($I$) generated in the photoelectric effect is directly proportional to the rate at which photons strike the metal surface.
- This rate is, in turn, proportional to the intensity of the incident light.
- Since intensity is related to the power ($P$) of the light source (assuming constant frequency), the photocurrent is proportional to the power: $I \propto P$.
- The problem states that the power of the light source decreases linearly with time ($t$). Mathematically, $P(t) \propto (P_0 - kt)$, where $k$ is a positive constant.
- Therefore, the photocurrent ($I$) must also decrease linearly with time. The graph of $I$ versus $t$ should be a straight line with a negative slope.
Stopping Potential Behavior
- The stopping potential ($|V|$) is the minimum reverse potential needed to stop the most energetic photo-electrons.
- According to Einstein's photoelectric equation, the maximum kinetic energy ($K_{max}$) of emitted electrons is given by $K_{max} = h\nu - \phi$, where $h$ is Planck's constant, $\nu$ is the frequency of incident light, and $\phi$ is the work function of the metal.
- The stopping potential is related to this maximum kinetic energy by $eV_s = K_{max}$, so $eV_s = h\nu - \phi$.
- This means the stopping potential depends only on the light's frequency ($\nu$) and the metal's work function ($\phi$).
- The problem specifies that the light source's power decreases, but it does not state any change in the light's frequency or the properties of the metal (work function).
- Assuming the frequency ($\nu$) remains constant, the stopping potential ($|V|$) will also remain constant over time, as long as photo-emission occurs.
Conclusion
Based on the analysis:
- Photocurrent ($I$) should decrease linearly with time.
- Stopping Potential ($|V|$) should remain constant with time.

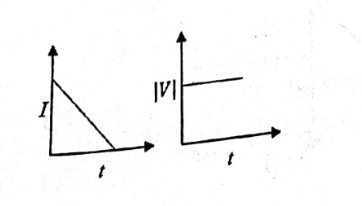

The correct graph representing these variations shows a linearly decreasing curve for photocurrent ($I$) and a constant horizontal line for the stopping potential ($|V|$).
