Incineration plants, also known as waste-to-energy (WTE) plants, are used in the solid waste treatment procedure. They involve the combustion of organic compounds found in the trash. Around 2,500 incineration plants are currently operational around the world. They have a yearly trash disposal capability of roughly 420 million tonnes. However, burning waste is not a good method since it produces tonnes of harmful ash and pollutes the air and water, and it also releases ashe. In fact, incineration is now reserved as a last option and is mostly utilized to manage infectious waste. Biological tissues, blood- contaminated materials, and other medical wastes, such as disposable hypodermic needles and tubing, are commonly disposed of by means of incinerators in hospitals and research zones. This article will explain to you about Incineration Plants for the disposal of solid wastes which will be helpful in preparing the Environment syllabus for the UPSC Civil service exam.

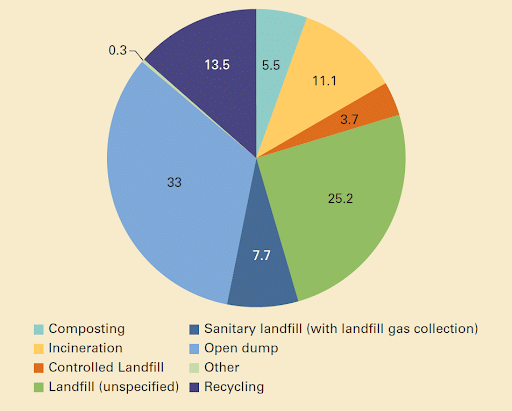

Percentage (11.1%) of Incineration in Waste Disposal

What is Incineration?

• Incineration is the process of burning waste in big furnaces at high temperatures.
• Incineration is the conversion of organic materials into bottom ash, flue gases, particles, and heat that can be utilized to produce electricity.
• It is a landfill reduction approach that reduces trash volume by 95-96 percent.
• In countries like Japan, where land is scarce, incinerating or thermally treating waste is very common.
• Incinerators built just a few decades ago in some nations did not always have a materials separation system in place to eliminate toxic, bulky, or recyclable items before burning.
• Due to insufficient levels of gas cleaning and combustion process control, these facilities posed a health danger to plant personnel and the surrounding environment. The majority of these institutions did not have power generators.

Incinerators - Working

• Before incineration, hazardous materials must be dug or pumped into containers.
• Additional preparation, such as grinding or removing large rocks and debris, or eliminating excess water, may be required.
• The items are then deposited in an incinerator's combustion chamber, where they are incinerated to a very high temperature for a specified amount of time.
• The temperature and duration of the process are determined by the waste and pollutants present.
• To provide the oxygen required for combustion, the chamber can be filled with air or pure oxygen.

Incineration- Procedure

• Combustion: An overhead crane feeds waste into the furnace on a continuous basis. The waste is burned in a specially built furnace at a high temperature of > 850°C for more than 2 seconds with ample air supply to ensure complete combustion and avoid the development of dioxins and carbon monoxide.
• Boiler/ Steam Turbine: The heat from the combustion is used to generate steam in the boiler/steam turbine. The steam then powers the turbine, which is connected to the generator of electricity. The extra heat created can be used to other uses, such as heating a swimming pool.
• Exhaust Gas Cleaning: To maintain compliance with the severe environmental standards, the exhaust gas from the boiler is normally cleaned using the following modern pollution control systems:
• Dry or Wet Scrubbers: It involves spraying lime powder or finely atomized slurry into hot exhaust gases to neutralise and remove contaminated acidic gases (sulphur oxides, hydrogen chloride)
• Activated Carbon Injection: Activated carbon is injected to absorb and remove any heavy metals and organic contaminants (such as dioxins) from exhaust gas.
• Bag House Filter: Filtering and removing dust and small particles with a bag house filter.
• Selective Non-Catalytic Reduction: reacts nitrogen oxides (a source of urban smog) with ammonia or urea to eliminate them.
• Ash Residues Handling : Bottom ash from the furnace and fly ash from the exhaust gas cleaning equipment are the most common ash remnants from incineration.
• The bottom ash is either recycled or disposed of in landfills.
• Fly ash is usually stabilised and consolidated with chemicals (such as cement) before being disposed of in a specialised landfill under strict environmental control.
• Some places employ ash melting, which uses the heat energy from the incinerator to melt the ash remains at a high temperature.
• Because the melted products are inert and free from harmful materials, they can be reused (e.g. as construction material).
• Although ash melting is more expensive than other methods, it has the advantages of greater volume reduction and the permanent fixation of any dangerous compounds in the ash.

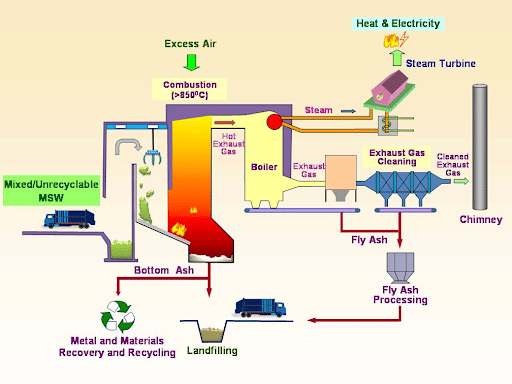

A Typical Setup of An Incinerator

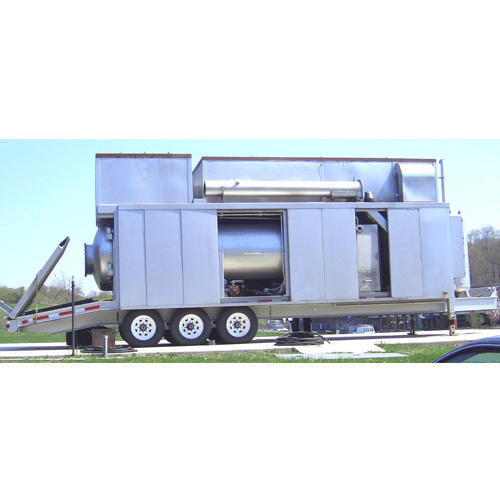

Mobile Incinerators

For Emergency Use

• Following mass mortality or disease epidemic, emergency incineration systems are available for the immediate and biosecure disposal of animals and their by-products.
• Governments and organizations around the world have been driven to tighten regulation and enforcement as a result of public pressure and major economic risk.

Small Incinerator Units

• Small-scale incinerators are available for specific purposes.
• Mobile small-scale incinerators, for example, are designed to destroy medical waste in developing countries in a sanitary manner.
• Small incinerators can be immediately deployed to remote places where an outbreak has occurred, allowing affected animals to be disposed of quickly and safely without chance of cross contamination.

Mobile Incinerators

Incineration- Advantages

• Energy Generation: The heat generated during combustion can be utilized to generate steam, which can then be used to power a turbine to generate energy.
• The normal range of net electrical energy that can be produced per tonne of waste burnt is around 500 to 600 kWh.
• As a result, the incineration of around 2,200 tonnes of waste each day will generate approximately 50 MW of electrical power.
• Pavers Bricks: One tonne of waste burnt produces 20-30 kg of ash, which can be used to make paving bricks. 60 kg of bricks may be made from one tonne of waste in incineration.
• Fly Ash with Carbon: A tonne of waste from the incinerator will yield 2 kilograms of fly ash with a carbon concentration of 0.1 percent to 0.2 percent. The agricultural field will greatly benefit from fly ash.
• Activated Carbon: The plant will produce about one kilogram of activated carbon. Sewage treatment, metal extraction, gold purification, and medicine are all possible applications.
• Pollution Reduction: External fuel is not used in the incineration process. Exhaust is directed through pollution control equipment that only emits water vapor into the atmosphere. Thus, it minimizes the amount of contamination in groundwater in residential areas near dump yards.
• Doesn’t Require Space: Finding space for new landfills in densely populated places is getting increasingly difficult. Thus, incineration plants serve as a better alternative in this scenario.

Incineration - Limitations

• Harming Emissions: In India, incinerator plants burn mixed waste. When chlorinated hydrocarbons like PVC are present, dioxins and furans are released when the waste is burned at less than 850 degrees Celsius.
• Health Issues: According to findings from a systematic assessment of past studies, incinerator pollution exposure is linked to a number of symptoms and diseases.
• Dioxins and furans are recognized carcinogens that can cause immunological, endocrine, neurological, and reproductive system dysfunction.
• Neoplasia, respiratory problems, congenital malformations, and baby deaths or miscarriages are among them.
• People who live near incinerators that are old and poorly maintained have more health problems. Some studies have also shown evidence of possible cancer risk.
• Poor Compliance: These incinerators are in violation of the National Green Tribunal's standards as they produce hazardous air pollutants including particulate matter (PM2.5 and PM10), carbon monoxide, acid gases, nitrogen oxides, and cancer-causing dioxins.
• Air And Water Pollutants: Even under ideal conditions, incineration releases considerable volumes of flue gases, mercury vapor, and lead compounds, and there is always about 30% residual from incineration in the form of slag (bottom ash) and fly ash (particulate matter), both of which are recognized to be serious air and water pollutants.
• High Moisture Content and Low Calorific Value: In India, the municipal waste contains a significant percentage of biodegradable (wet) waste, ranging from 60 to 70% of total waste, compared to 30% in Western countries. Our waste has high moisture content and a low calorific value as a result of this.

Conclusion

Incineration can be combined with energy recovery to increase the disposal's economic value. Any incinerator should concentrate on the "Three T's" for maximum efficiency. "Time," "temperature," and "turbulence" are the three Ts. These three T's play a critical part in establishing an incinerator's efficiency. The efficiency is also dependent on the residence period of combustion products in any incineration system.
