Architecture in the Harappan civilization (3300 BCE- 1500 BCE) was unique when compared to other contemporary civilizations. It shows the early elements of Indian architecture. Here we will discuss in detail the Architecture in the Harappan Civilization, which will be helpful for UPSC IAS Exam preparation.

Architecture in Harappan Civilization - Features

• The style was entirely unique, with no obvious foreign influences.
• The structures were built only for functional purposes, not for aesthetic reasons.
• The evolution of architecture and sculpture seldom occurs in isolation. The architecture of the Indus Valley, however, is an exception to this rule.
• Local cultures influenced architectural traditions, which date back thousands of years to the first farming and pastoral settlements. For example, they built their homes on massive mud-brick platforms.
• The elegance achieved with its urban planning is the crowning pearl of IV architecture. No other modern culture can match this level of complexity.

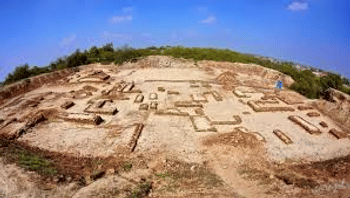

Town planning in Harappan Civilization

Utilitarian perspective: The Harappans were the first to introduce the concept of worker welfare by creating separate worker's quarters, which has since become a requirement in a welfare state.

Harappan city planning: Harappan cities did not all have the same town design. However, most cities followed the same path. Harappan city designs included the defensive wall, citadel, and lower town, as well as roadways and alleys, drainage systems, and water management systems.

• The city plan was created with the use of geometrical tools by the architects.
• In most Harappan towns, a certain pattern was followed in which the citadel was located to the west of the lower town, although in some cities it was located to the south.
• The cardinal directions of streets and lanes were also used to partition certain rural villages into blocks and sub-blocks. The residences were lined up on both sides of the streets.

Fortification wall: The fortification wall defended certain Early Harappan towns, as well as numerous Harappan cities. The fortress wall defended Kot Diji, Rehman Dehri, Tarakai Qila, Kohtras, Buthi, Mehrgarh, Dhalewan, Bhirrana, Balu, Kalibangan, and others.

Gateways: Some Harappan cities had only one doorway, such as Lothal and Balu, while others, such as Kalibangan and Surkotada, had two or more. There were two sorts of gateways: one was a plain entry for vehicle activity, while the other had some unique significance.

Bastions: During the Harappan period, defensive walls were used to build bastions. They were used as lookout towers.

Material Used: Bricks, baked bricks, mud, stones, and other mud-based materials were employed.

Intercommunication passage: Some Harappan sites have intercommunication routes that were utilized for the kings', priests', and common people's mobility.

Citadel and Lower Town: Harappan cities were divided into walled sectors in separate portions of the settlement, which were known as citadels and lower-towns.

• The citadel was constructed on a raised plate shape, while the lower town was constructed on a lower level.
• The citadel was smaller than the lower town. While the citadel included public structures like the Great Bath, the lower town mainly solely had private buildings.
• Some cities, such as Harappa, Mohenjodaro, Kalibangan, Banawali, Rakhigarhi, Lothal, Dholavira, and others, had citadel and lower town settlements, but most cities did not.

Grid Pattern: By 2600 BC, the principal towns of the Indus Valley Civilization, Mohenjodaro, and Harappa, were built with blocks split by a grid of straight streets running north-south and east-west.

Disaster-proof: Harappans built their dwellings on platforms to avoid flooding. Drainage system:

Reservoirs: The Harappans were hydraulic engineering masters. They devised an effective technique.

• The drains were built with drips at regular intervals for self-cleaning.
• Small drains emptied into private drains, and big drains drained into huge drains. The enormous sewers carried the city's wastewater outdoors, where it was disposed of in open areas or in ponds of various types.
• Stones or huge bricks were used to conceal certain drains. Soakage jars, man-hole cesspools, and other drainage system components were vital.

Granaries: The granary was Mohenjodaro's greatest structure, while Harappa had roughly six granaries or storehouses. These were grain storage bins.

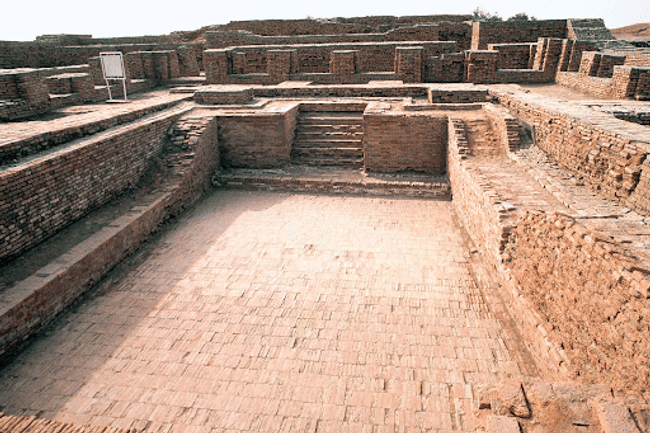

• The Great Bath in Mohenjodaro is located to the east of the granary. It is the oldest water tank ever discovered in the ancient world. The bath's floor was made up of five levels. It was so waterproof that it still holds water today. There were locker rooms. It was most likely utilized at religious events and festivities.

Houses: The houses were of various sizes. It's possible that some of them had two levels.

• The dwellings were constructed of smoldering bricks. A central courtyard, a well, a bathing place, and a kitchen were all included in most of the dwellings.
• Each home was immediately connected to an effective drainage system, indicating a well-developed municipal infrastructure.

No temples: Despite the fact that there is no evidence of temple construction or other religious sites, the people followed religion. Some religious practices have been related to the Great Bath.

No monuments to armament or battle: Military troops or weaponry for battle have not been discovered in this culture's excavations. While other civilizations’ art has numerous depictions of prisoners, monuments to military triumphs, and other warfare-related activities, the Indus Valley's art does not contain a single such portrayal.

• The early river valley civilization in India was notable for having a cooperative culture without the reign of rulers, according to archaeological evidence. The focus appears to have been on peaceful trade rather than military power expansion.

Lothal's Town Planning

• Historians have discovered a distinct type of urban design at Lothal, Gujarat, on India's western coast.
• This city was split into six sectors, each with its own mud-brick platform.
• In terms of town layout, Lothal differs from other Indus Valley Civilization sites in that it has admission to the homes on the main street, whereas other sites have lateral entry.

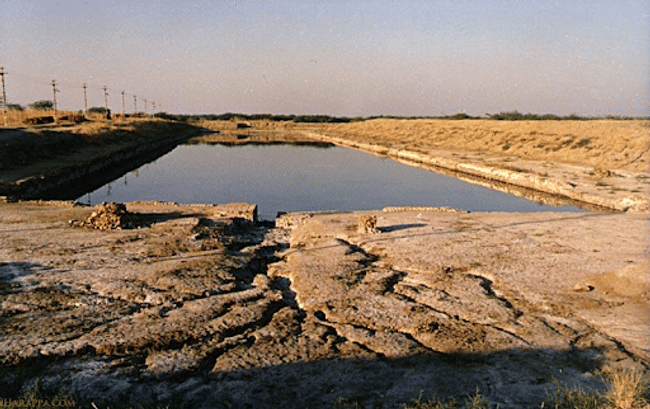

Dockyard of Lothal

• A massive facility on the island of Lothal has been recognized as a tidal port for seagoing ships.
• There is a lot of evidence that the towns of the Indus Valley traded extensively with other civilizations throughout that time period.
• Trade with towns in this region is mentioned in Mesopotamian records, and items from the Indus region have been discovered in West Asian cities.

• When the surrounding Kutch desert was a part of the Arabian Sea, Lothal's dock—the world's oldest known—connected the city to an ancient stream of the Sabarmati river on the trade route between Harappan settlements in Sindh and the peninsula of Saurashtra.
• In ancient times, it was a significant and bustling trading center, with its commerce of beads, diamonds, and expensive decorations stretching far into West Asia and Africa.

Harappan Civilization's Urban Planning Lessons

• The Indus Valley Civilization had an exceptional urban design, particularly in the areas of sanitation and drainage.
• It can, to a large extent, give input to current urbanization. Dealing with the haphazard construction of structures has been one of the key issues of urban planning in India.
• The streets of the Harappan Civilization were laid out in grid-like layouts, allowing for deliberate and planned expansion.
• In contemporary times, Le Corbusier's ideas for Chandigarh included a rectangular form with a gridiron pattern, allowing for faster traffic flow and a smaller footprint.
• The town was likewise firmly divided into residential and common/public sectors in the Civilization.
• The Harappan Civilization granaries, with their strategically positioned air ducts and platforms separated into sections, are likewise an example of clever design.
• The houses were built in such a way that they didn't interfere with the road layout in any way. Instead of opening out onto the roadways, the residences had doors that opened into the lanes.
• The warehouse at Lothal is an excellent example of precise design.
• The civilization’s drains connected each and every home, allowing residents to deposit their trash immediately.
• The drains were covered and linked to the bigger sewage outputs immediately. For maintenance purposes, there were inspection holes in the sewers and manholes in the streets.
• As a result, the Harappan Civilization's urban planning has greatly aided us in learning from it.

Conclusion

The Harappan civilization is a significant milestone in the Indian subcontinent's past. In many aspects, civilization serves as a wonderful model for the modern world. Their knowledge of urban design, water management and harvesting systems, and drainage systems are unrivaled.

FAQs

Q1: What are the main features of Harappan architecture?

Q2: What is the significance of the Great Bath in Harappan Civilization?

Q3: How were Harappan cities planned?

Q4: What materials were used in Harappan architecture?

Q5: How did the Harappans manage water and sanitation in their cities?

MCQs

1. Which of the following is a significant architectural feature of the Harappan Civilization?

a) Stupas

b) Pillars

c) Drainage systems

d) Rock-cut caves

2. What is the Great Bath at Mohenjo-Daro primarily known for?

a) A granary

b) A marketplace

c) A public bath

d) A temple

3. What material was predominantly used in the construction of Harappan cities?

a) Stone

b) Wood

c) Burnt bricks

d) Concrete

4. What type of town planning was adopted by the Harappans?

a) Circular pattern

b) Grid pattern

c) Zig-zag pattern

d) Spiral pattern

5. The Harappan cities were divided into two parts. What were they?

a) Upper town and lower town

b) Fortified area and market area

c) Inner city and outer city

d) Royal quarters and commoner quarters

GS Mains Questions and Model Answers

Q1. Discuss the significance of town planning in the Harappan Civilization, with a focus on its urban features and drainage systems.

Answer: The town planning of the Harappan Civilization is considered one of the most advanced in the ancient world, reflecting a high level of social organization and engineering skill. Harappan cities like Mohenjo-Daro and Harappa were planned using a grid pattern, with streets laid out in straight lines and intersecting at right angles. This form of urban planning ensured efficient traffic movement and space utilization. The cities were divided into citadels (upper towns) and lower towns, with public buildings located in the citadel and residential areas in the lower towns. One of the most remarkable features was the drainage system, with covered drains running alongside streets. Every house had access to these drains, ensuring proper sanitation and waste management. Water supply was also well-managed, with many houses having private wells, and public baths like the Great Bath in Mohenjo-Daro showcased the importance of hygiene and ritual in Harappan society. The systematic approach to urban planning in the Harappan Civilization reflects a sophisticated understanding of civil engineering and urban management.

Q2. Analyze the architectural advancements of the Harappan Civilization with reference to its public buildings like granaries and the Great Bath.

Answer: The Harappan Civilization made significant architectural advancements, particularly in the construction of public buildings like granaries and the Great Bath. The Great Bath at Mohenjo-Daro is one of the earliest examples of public architecture in the world. It was constructed using waterproof bricks and featured a sophisticated drainage system, indicating advanced knowledge of hydraulics. The structure is believed to have been used for ritual bathing, reflecting the importance of water in Harappan religious practices. Additionally, the Harappans built large granaries to store surplus grain, highlighting the importance of agriculture and food security in their society. These granaries were strategically located near river banks and had ventilation systems to keep the grain dry. The use of burnt bricks in these structures further demonstrates the Harappans' mastery in construction techniques. The emphasis on public buildings like granaries and baths showcases the organized and community-oriented nature of Harappan society, where collective welfare and infrastructure were priorities.

Q3. Evaluate the role of architecture in the Harappan Civilization in terms of its contribution to trade, defense, and daily life.

Answer: The architecture of the Harappan Civilization played a crucial role in supporting trade, defense, and daily life. The well-planned cities, with their grid-pattern streets and efficient drainage systems, made trade and daily life highly organized. Harappan cities were often located near rivers, facilitating trade routes both within the civilization and with distant regions, such as Mesopotamia. The presence of granaries in strategic locations suggests that surplus agricultural produce was stored for trade and to support urban populations. Architecturally, Harappan cities also displayed features of defense, such as fortified citadels and walls surrounding key areas, likely protecting against both floods and potential invaders. In terms of daily life, houses were built using standardized bricks, and many were equipped with private wells and bathing areas, reflecting the importance of hygiene. The planning and architecture of public and residential buildings reveal that the Harappans prioritized comfort, security, and trade, making their cities functional and sustainable for centuries.

Previous Year Questions on  Harappan Architecture

1. UPSC CSE Mains 2018

Question. Discuss the role of the Great Bath in Mohenjo-Daro in the context of the Harappan Civilization’s urban planning and architecture.

Answer: The Great Bath at Mohenjo-Daro is one of the most significant architectural structures of the Harappan Civilization, representing advanced knowledge of urban planning and water management. This large, rectangular water tank was constructed with waterproof bricks and was surrounded by corridors and steps, suggesting that it was used for ritual bathing. The presence of drainage systems and a well nearby indicates a sophisticated understanding of hydraulics and sanitation. The Great Bath’s location in the citadel area, where public and administrative buildings were situated, further emphasizes its importance in Harappan society. The structure reflects not only the architectural skills of the Harappans but also the importance of religious and social rituals in their culture. Its construction, involving advanced engineering techniques, demonstrates the Harappans' ability to create functional public spaces that also held spiritual significance.

2. UPSC CSE Mains 2019

Question. Analyze the significance of the grid pattern in Harappan city planning and how it contributed to the overall functionality of their cities.

Answer: The use of the grid pattern in Harappan city planning was one of the most advanced features of urban design in the ancient world. Cities like Harappa and Mohenjo-Daro were laid out with streets running at right angles, forming a rectangular grid. This layout not only facilitated efficient movement of people and goods but also allowed for better management of public spaces. The grid pattern made it easier to organize the placement of residential, commercial, and public buildings, ensuring that resources like water and sanitation were distributed evenly across the city. Additionally, the uniformity in the layout allowed for the construction of standardized houses and ensured that the cities were easy to expand as the population grew. This systematic approach to city planning also contributed to the drainage systems, as the straight streets made it easier to install and maintain the underground drains. Overall, the grid pattern was a key factor in the functionality and sustainability of Harappan cities, reflecting the advanced level of civil engineering and urban management practiced by this civilization.
