There is a ring of radius $r$ having linear charge density $\lambda$ and rotating with a uniform angular velocity $\omega$. The magnitude of the magnetic field produced by this ring at its own centre would be
($\mu_0 = \text{permeability of air}$)
Magnetic Field Calculation for Rotating Ring
A rotating charged ring constitutes an electric current, which generates a magnetic field. We can calculate the magnetic field at the center by determining the equivalent current first.
Deriving the Magnetic Field Formula
Let the ring have radius $r$ and linear charge density $\lambda$. The total charge $Q$ on the ring is:
$Q = \lambda \times (2\pi r)$
The ring rotates with a constant angular velocity $\omega$. The time period $T$ for one full rotation is:
$T = \frac{2\pi}{\omega}$
The effective current $I$ generated by the rotating charge is charge passing per unit time:
$I = \frac{Q}{T} = \frac{\lambda \times (2\pi r)}{\frac{2\pi}{\omega}} = \lambda r \omega$
The magnetic field $B$ at the center of a circular current loop of radius $r$ is given by:
$B = \frac{\mu_0 I}{2r}$
Substitute the derived current $I$ into the magnetic field formula:
$B = \frac{\mu_0 (\lambda r \omega)}{2r}$
Simplifying the expression yields the magnetic field magnitude:
$B = \frac{\mu_0 \lambda \omega}{2}$
Final Magnetic Field Magnitude
The magnitude of the magnetic field produced by the rotating ring at its center is $\frac{\mu_0 \lambda \omega}{2}$.
Similar Questions
A uniform time-varying magnetic field exists in a circular region of radius $R$, directed perpendicular into the plane of the paper, increasing at a constant rate $\alpha$. A straight conducting rod of length $2R$ is placed exactly along the diameter of the circular region (passing through the centre). Find the induced emf across the rod.
- Consider a fuse wire of length $l$ and radius $r$. The time of heating ($t$) for passing the maximum current will depend on
- A circular coil, carrying current, has radius $R$. The distance from the centre of the coil on the axis where the magnetic induction will be $\frac{1}{27}$th of its value at the centre of the coil is
- A square of side $L$ lies in the $x-y$ plane, where the magnetic field is given by $B = B_0 (2\hat{i} + 3\hat{j} + 4\hat{k})$ where $B_0$ is constant. The magnetic flux passing through the square is
- A resistor of resistance '$R$' draws power '$P$' when connected to an AC source. If an inductance is now placed in series with $R$, such that the impedance of the circuit becomes '$Z$', the power drawn will be
- A simple pendulum of length $l$ has a bob of mass $m$, with a charge $q$. On it a vertical sheet of charge, with surface charge density '$\sigma$' passes through the point of suspension. At equilibrium, if the string makes an angle $\theta$ with the vertical, then
- The magnetic moment of an iron bar is $M$. It is now bent in such a way that it forms an arc section of a circle subtending an angle of $60^{\circ}$ at the centre. The magnetic moment of the arc section is
- The displacement current flows through a capacitor when the voltage across its plates
A charged particle of charge q and mass m is placed at a distance 2R from the centre of a vertical cylindrical region of radius R where magnetic field varies as \(\vec{B}=(4t^{2}-2t+6)\hat{k}\), where t is time. Then which of the following statement(s) is/are true ?

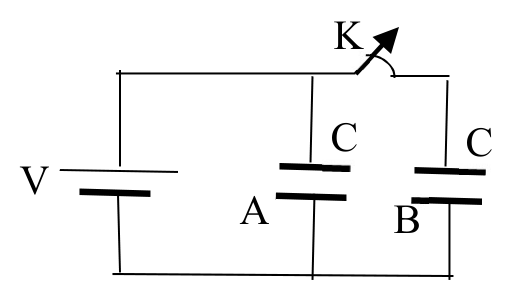

The figure shows two identical parallel plate capacitors A and B of capacitances C connected to a battery. The key K is initially closed. The switch is now opened and the free spaces between the plates of the capacitors are filled with a dielectric constant 3. Then which of the following statement(s) is/are true ?
