Fuse Wire Heating Time Dependence Explained
The time ($t$) it takes for a fuse wire to heat up and melt depends on the heat generated by the current passing through it and the heat required to melt the wire's material.
Deriving Heating Time Dependence
1. Heat Generated ($H$): According to Joule's law, the heat generated in a conductor is given by $H \propto I^2 R t$, where $I$ is the current, $R$ is the resistance, and $t$ is the time.
2. Resistance ($R$): The resistance of a fuse wire is calculated as $R = \frac{\rho l}{A}$, where $\rho$ is the resistivity, $l$ is the length, and $A$ is the cross-sectional area. Since the area $A = \pi r^2$, we have $R \propto \frac{l}{r^2}$.
3. Heat Required for Melting ($H_{melt}$): The heat required to melt the fuse wire is proportional to its mass ($m$). The mass is given by $m = \text{density} \times \text{Volume}$. The volume ($V$) of the wire is $V = A \cdot l = \pi r^2 l$. Therefore, $H_{melt} \propto m \propto V \propto r^2 l$.
4. Time Calculation: The fuse melts when the heat generated equals the heat required for melting ($H = H_{melt}$). So, we have the proportionality:
$I^2 R t \propto r^2 l$
Substituting the proportionality for $R$ ($R \propto \frac{l}{r^2}$):
$I^2 \left( \frac{l}{r^2} \right) t \propto r^2 l$
Now, we solve for $t$:
$t \propto \frac{r^2 l}{I^2 (l/r^2)}$
$t \propto \frac{r^2 l \cdot r^2}{I^2 l}$
$t \propto \frac{r^4 l}{I^2 l}$
The length term $l$ cancels out:
$t \propto \frac{r^4}{I^2}$
Final Dependence
The question asks for the dependence when passing the *maximum current*. This implies $I$ is a fixed value. Therefore, the time of heating ($t$) is proportional to the fourth power of the radius ($r^4$) and has no dependence on the length ($l^0$).
$t \propto r^4 l^0$
Similar Questions
- A circular coil, carrying current, has radius $R$. The distance from the centre of the coil on the axis where the magnetic induction will be $\frac{1}{27}$th of its value at the centre of the coil is
- A resistor of resistance '$R$' draws power '$P$' when connected to an AC source. If an inductance is now placed in series with $R$, such that the impedance of the circuit becomes '$Z$', the power drawn will be
- A simple pendulum of length $l$ has a bob of mass $m$, with a charge $q$. On it a vertical sheet of charge, with surface charge density '$\sigma$' passes through the point of suspension. At equilibrium, if the string makes an angle $\theta$ with the vertical, then

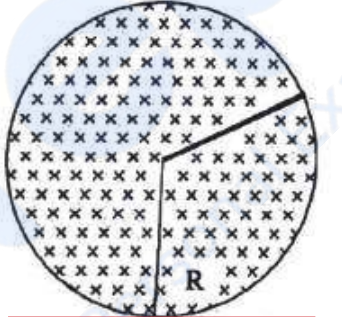

A uniform time-varying magnetic field exists in a circular region of radius $R$, directed perpendicular into the plane of the paper, increasing at a constant rate $\alpha$. A straight conducting rod of length $2R$ is placed exactly along the diameter of the circular region (passing through the centre). Find the induced emf across the rod.
