1. Calculate the Least Count (LC)
- Main Scale Division (MSD) = $1\text{ mm}$
- Number of divisions on Vernier scale = $10$
- Assuming $10$ Vernier Scale Divisions (VSD) equal $9$ MSD:
- $1 \text{ VSD} = \frac{9}{10} \times \text{MSD} = \frac{9}{10} \times 1\text{ mm} = 0.9\text{ mm}$
- Least Count (LC) = $1 \text{ MSD} - 1 \text{ VSD} = 1\text{ mm} - 0.9\text{ mm} = 0.1\text{ mm}$
- Convert LC to cm: $LC = 0.01\text{ cm}$
2. Determine the Zero Error (ZE)
- The Vernier scale shifts to the left of the main scale zero, indicating a negative zero error.
- The $4^{\text{th}}$ Vernier division coincides with a main scale division.
- Zero Error ($ZE$) = $- (\text{Coinciding VSD} \times LC)$
- $ZE = -(4 \times 0.1\text{ mm}) = -0.4\text{ mm}$
- Convert ZE to cm: $ZE = -0.04\text{ cm}$
3. Calculate the Actual Length
- Observed Reading = $1\text{ cm}$
- Actual Length = Observed Reading - Zero Error
- Actual Length = $1\text{ cm} - (-0.04\text{ cm})$
- Actual Length = $1\text{ cm} + 0.04\text{ cm}$
- Actual Length = $1.04\text{ cm}$
Similar Questions

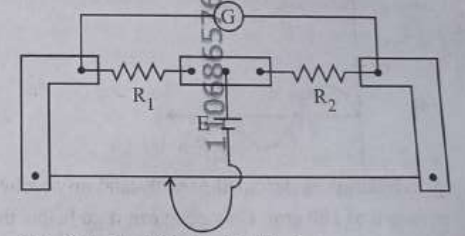

In a metre bridge experiment, the positions of the cell, E, and galvanometer, G, are interchanged. We shall observe in the galvanometer :
