Match List - I with List - II.

List - I (Sequence x[n]) List - II (Fourier Transform X(Ω))
(A) \(e^{j\Omega_{0}n}x[n]\) (I) \(\left(1-e^{-j\Omega}\right)X(\Omega)\)
(B) \(n\,x[n]\)(II) \(X(\Omega-\Omega_{0})\)
(C) \(x[n]-x[n-1]\)(III) \(e^{-j\Omega n_{0}}\)
(D) \(\delta[n-n_{0}]\)(IV) \(j\dfrac{dX(\Omega)}{d\Omega}\)

Choose the correct answer from the options given below :

This question was previously asked in
UGC NET 2023 Electronic Science Question Paper (13-Dec-2023) (Shift 1)
The correct answer is

(A)-(II), (B)-(IV), (C)-(I), (D)-(III)

Each entry is one standard property of the discrete-time Fourier transform: (A)-(II), (B)-(IV), (C)-(I), (D)-(III) — option 2.

(A) — frequency shifting. Multiplying a sequence by a complex exponential translates its spectrum:

\(e^{j\Omega_{0}n}x[n]\ \longleftrightarrow\ X\left(\Omega-\Omega_{0}\right)\)

It is the dual of time shifting, and it is exactly what modulation does — multiplying by a carrier moves the baseband spectrum up to the carrier frequency.

(B) — differentiation in frequency. Differentiating the transform brings down a factor of n:

\(n\,x[n]\ \longleftrightarrow\ j\dfrac{dX(\Omega)}{d\Omega}\)

This can be seen directly from the definition \(X(\Omega)=\sum x[n]e^{-j\Omega n}\): differentiating with respect to \(\Omega\) brings down \(-jn\) from the exponent, and multiplying by j corrects the sign.

(C) — the first difference. Time shifting by one sample multiplies the transform by \(e^{-j\Omega}\), so by linearity

\(x[n]-x[n-1]\ \longleftrightarrow\ X(\Omega)-e^{-j\Omega}X(\Omega)=\left(1-e^{-j\Omega}\right)X(\Omega)\)

The factor \(\left(1-e^{-j\Omega}\right)\) vanishes at \(\Omega=0\), which is the discrete-time counterpart of differentiation removing a constant — a first difference is a high-pass operation.

(D) — the shifted impulse. The sum collapses to a single term:

\(\sum_{n}\delta\left[n-n_{0}\right]e^{-j\Omega n}=e^{-j\Omega n_{0}}\)

Its magnitude is 1 at every frequency — an impulse contains all frequencies equally — and the shift appears entirely as a linear phase. This is the origin of the rule that a pure delay is a linear-phase system.

A quick way to check the code. Only (D) has a transform that is a bare function of \(\Omega\) with no \(X\) in it, since \(\delta[n-n_{0}]\) is the only entry in List I that is a specific sequence rather than a general one. Pairing (D) with (III) alone eliminates options 1 and 3, and (B) with (IV) settles the rest.

Hence, the correct code is (A)-(II), (B)-(IV), (C)-(I), (D)-(III).

Was this answer helpful?

Similar Questions

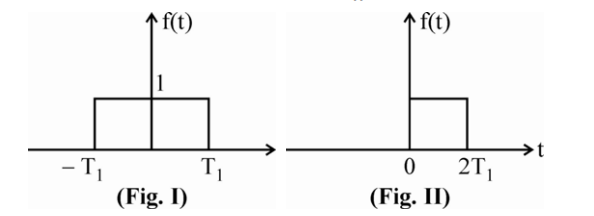

  1. Which one of the following is the Fourier transform of the signal given in Fig. II, if the Fourier transform of the signal in Fig. I is \(=2\dfrac{\sin\omega T_1}{\omega}\) ?
