The given mathematical representation belongs to: y(t) = x(t - T)
time shifting
Mathematical Representation of Time Shifting
The given mathematical representation is \(y(t) = x(t - T)\). This expression describes a fundamental operation performed on a signal in the time domain. Understanding this representation is crucial in fields like signal processing and systems analysis.
Shifting Signals in Time
The operation \(y(t) = x(t - T)\) specifically refers to time shifting. In this equation:
- \(x(t)\) represents the original input signal at time \(t\).
- \(y(t)\) represents the transformed output signal.
- \(T\) is a constant value representing the amount of shift.
The effect of \(T\) determines whether the signal is delayed or advanced:
- If \(T > 0\), the signal \(x(t)\) is shifted to the right by \(T\) units. This means the event that occurred at time \(t_0\) in \(x(t)\) will now occur at time \(t_0 + T\) in \(y(t)\). This is also known as a delay. For example, if \(y(t) = x(t - 2)\), then \(y(0) = x(-2)\), meaning the value of the signal at \(t=0\) in \(y(t)\) is the value of \(x(t)\) from \(2\) units ago.
- If \(T < 0\), say \(T = -A\) where \(A > 0\), then the expression becomes \(y(t) = x(t - (-A)) = x(t + A)\). In this case, the signal \(x(t)\) is shifted to the left by \(A\) units. This means the event that occurred at time \(t_0\) in \(x(t)\) will now occur at time \(t_0 - A\) in \(y(t)\). This is known as an advance. For example, if \(y(t) = x(t + 2)\), then \(y(0) = x(2)\), meaning the value of the signal at \(t=0\) in \(y(t)\) is the value of \(x(t)\) from \(2\) units in the future.
Comparing with Other Time Operations
To further clarify, let's briefly look at other common time-domain operations on a signal \(x(t)\):
| Operation | Mathematical Representation | Description |
|---|---|---|
| Time Shifting | \(y(t) = x(t - T)\) | Shifts the signal left (advance) or right (delay) along the time axis. |
| Time Scaling | \(y(t) = x(at)\) | Compresses the signal (if \(a > 1\)) or expands it (if \(0 < a < 1\)) along the time axis. |
| Time Reversal | \(y(t) = x(-t)\) | Flips the signal horizontally about the vertical axis (\(t=0\)). |
| Time Multiplication | Often refers to multiplication of two signals, e.g., \(y(t) = x(t) \cdot h(t)\) | Combines two signals by multiplying their instantaneous values. Not a single signal transformation like shifting, scaling, or reversal. |
Based on the definitions, the given representation \(y(t) = x(t - T)\) perfectly matches the definition of time shifting.
Important Questions from Properties of Fourier Transform
Which type of property is shown by the following function.
L{K f(t)} = K F(s)
The energy of the signal \(x(t) = \frac{{{\rm{sin}}\left( {4{\rm{\pi t}}} \right)}}{{4{\rm{\pi t}}}}\) is______
Consider the signal x(t) = e-|t|. Let X(jω) = \(\mathop \smallint \limits_{ - \infty }^\infty x\left( t \right){e^{ - j\omega t}}dt\) be the Fourier transform of x(t). The value of X(j0) is
A real-valued signal 𝑥(𝑡) limited to the frequency band \(\left| f \right| \le \frac{W}{2}\) is passed through a linear time-invariant system whose frequency response is
\(H\left( f \right) = \left\{ {\begin{array}{*{20}{c}} {{e^{ - j4\pi f,\;\;\;\left| f \right| \le \frac{W}{2}}}}\\ {0,\;\;\;\;\left| f \right| > \frac{W}{2}} \end{array}} \right.\)

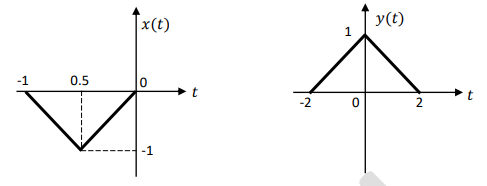

The output of the system isConsider two continuous time signals $x(t)$ and $y(t)$ as shown below
