This solution calculates the time a light ray spends inside a glass slab.
Apply Snell's Law:
The relationship between the angle of incidence ($i$) in air and the angle of refraction ($r$) inside the glass slab ($\mu$) is given by:
$ \sin i = \mu \sin r $
Solving for $\sin r$:
$ \sin r = \frac{\sin i}{\mu} $
Calculate the distance travelled inside the slab:
Let the path length of the light ray inside the slab be $L$. The thickness of the slab is $t$. The angle the light ray makes with the normal inside the slab is $r$.
Consider the right-angled triangle formed by the thickness $t$ (adjacent to angle $r$) and the path length $L$ (hypotenuse).
$ \cos r = \frac{t}{L} $
Therefore, the distance $L$ is:
$ L = \frac{t}{\cos r} $
We need $\cos r$. Using the identity $\sin^2 r + \cos^2 r = 1$:
$ \cos r = \sqrt{1 - \sin^2 r} $
Substitute $\sin r = \frac{\sin i}{\mu}$:
$ \cos r = \sqrt{1 - \left(\frac{\sin i}{\mu}\right)^2} = \sqrt{\frac{\mu^2 - \sin^2 i}{\mu^2}} = \frac{\sqrt{\mu^2 - \sin^2 i}}{\mu} $
Now substitute $\cos r$ back into the equation for $L$:
$ L = \frac{t}{\frac{\sqrt{\mu^2 - \sin^2 i}}{\mu}} = \frac{\mu t}{\sqrt{\mu^2 - \sin^2 i}} $
Calculate the speed of light inside the slab:
The speed of light ($v$) in the glass slab is:
$ v = \frac{c}{\mu} $
Calculate the total time spent:
The time ($T$) is the distance $L$ divided by the speed $v$:
$ T = \frac{L}{v} = \frac{\left(\frac{\mu t}{\sqrt{\mu^2 - \sin^2 i}}\right)}{\left(\frac{c}{\mu}\right)} $
$ T = \frac{\mu t}{\sqrt{\mu^2 - \sin^2 i}} \times \frac{\mu}{c} $
$ T = \frac{\mu^2 t}{c\sqrt{\mu^2 - \sin^2 i}} $
The total time spent by the ray inside the slab is $\frac{\mu^2 t}{c\sqrt{\mu^2 - \sin^2 i}}$.

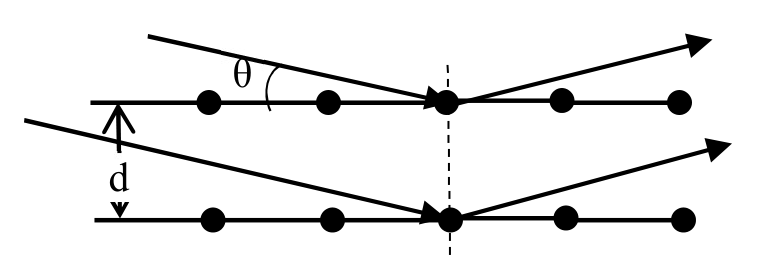

X-rays of wavelength λ gets reflected from parallel planes of atoms in a crystal with spacing d between two planes as shown in the figure. If the two reflected beams interfere constructively, then the condition for maxima will be, (n is the order of interference fringe)

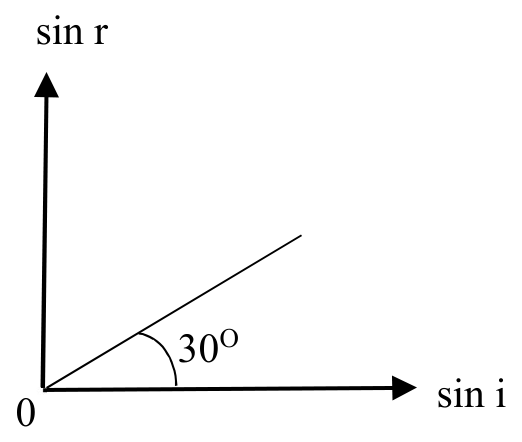

A ray of monochromatic light is incident on the plane surface of separation between two media X and Y with angle of incidence ‘i’ in medium X and angle of refraction ‘r’ in medium Y. The given graph shows the relation between sin i and sin r. If VX and VY are the velocities of the ray in media X and Y respectively, then which of the following is true ?

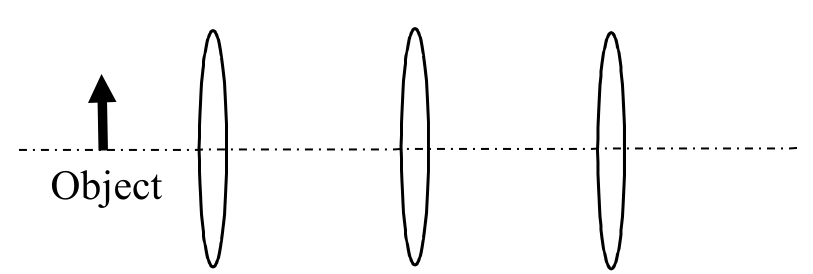

Three identical convex lenses each of focal length f are placed in a straight line separated by a distance f from each other. An object is located at f/2 in front of the leftmost lens. Then,

An interference pattern is obtained with two coherent sources of intensity ratio n:1. The ratio \(\dfrac{I_{Max} - I_{Min}}{I_{Max} + I_{Min}}\) will be maximum if

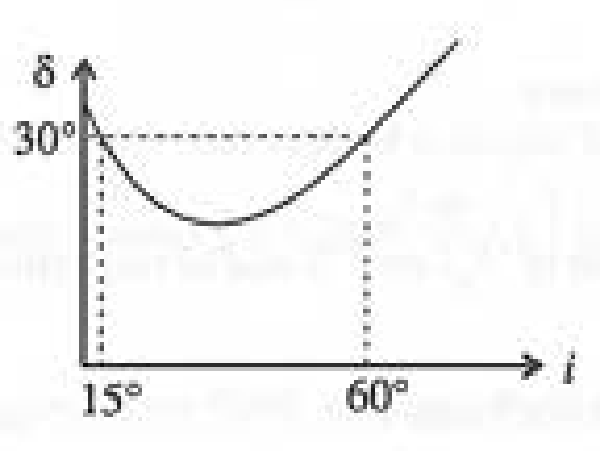

Figure shows the graph of angle of deviation δ versus angle of incidence i for a light ray striking a prism. The prism angle is

A single slit diffraction pattern is obtained using a beam of red light. If red light is replaced by blue light then

A parallel beam of light is incident on a glass prism in the shape of a quarter cylinder of radius R = 0.05 m and refractive index n = 1.5, placed on a horizontal table as shown in the figure. Beyond the cylinder, a patch of light is found whose nearest distance x from the cylinder is
A point object is held above a thin equiconvex lens at its focus. The focal length is 0.1 m and the lens rests on a horizontal thin plane mirror. The final image will be formed at
Two monochromatic coherent light beams A and B have intensities L and \(\frac{L}{4}\) respectively. If these beams are superposed, the maximum and minimum intensities will be
The ratio of the diameter of the sun to the distance between the earth and the sun is approximately 0.009. The approximate diameter of the image of the sun formed by a concave spherical mirror of radius of curvature 0.4 m is
