Let the circle inscribed in \(\Delta ABC\) touch the sides AB, BC, and AC at points P, Q, and R, respectively.
According to the properties of tangents drawn from a point to a circle, we have:
- \(AP = AR\)
- \(BP = BQ\)
- \(CQ = CR\)
Let \(AR = AP = x'\), \(BP = BQ = y'\), and \(CQ = CR = z'\).
Triangle Side Lengths from Tangent Segments
The side lengths of the triangle can be expressed in terms of these segments:
- \(AB = AP + PB = x' + y'\)
- \(BC = BQ + QC = y' + z'\)
- \(AC = AR + RC = x' + z'\)
Using Given Side Differences
We are given the following differences:
- \(AB - BC = (x' + y') - (y' + z') = x' - z' = 3\) cm
- \(AB - AC = (x' + y') - (x' + z') = y' - z' = 2\) cm
From these, we can express \(x'\) and \(y'\) in terms of \(z'\):
- \(x' = z' + 3\)
- \(y' = z' + 2\)
Calculating the Semi-Perimeter
The perimeter of \(\Delta ABC\) is given as 60 cm.
Perimeter \(= AB + BC + AC = (x' + y') + (y' + z') + (x' + z') = 2(x' + y' + z')\)
\(60 = 2(x' + y' + z')\)
The semi-perimeter, \(s = x' + y' + z' = \frac{60}{2} = 30\) cm.
Solving for Tangent Segments
Substitute the expressions for \(x'\) and \(y'\) into the semi-perimeter equation:
\((z' + 3) + (z' + 2) + z' = 30\)
\(3z' + 5 = 30\)
\(3z' = 30 - 5 = 25\)
\(z' = \frac{25}{3}\) cm
Now, find \(x'\) and \(y'\):
- \(x' = z' + 3 = \frac{25}{3} + 3 = \frac{25 + 9}{3} = \frac{34}{3}\) cm
- \(y' = z' + 2 = \frac{25}{3} + 2 = \frac{25 + 6}{3} = \frac{31}{3}\) cm
Finding the Required Sum
We need to find the value of \(PB + AR\).
\(PB = y'\) and \(AR = x'\).
\(PB + AR = y' + x'\)
\(PB + AR = \frac{31}{3} + \frac{34}{3} = \frac{31 + 34}{3} = \frac{65}{3}\) cm.
Similar Questions
When does a parallelogram become a rectangle?

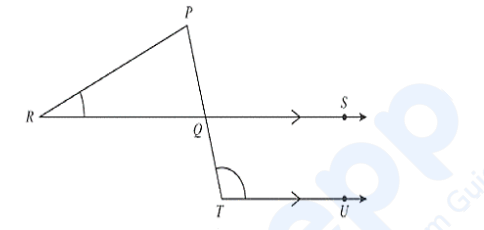

In the following figure, RS ∥ TU. Find the value of ∠PQR − ∠PRQ, if ∠QTU + ∠PRQ = 130° and ∠RPQ = 80°.
