555 Timer IC Control Terminal Purpose

The 555 timer IC is a versatile integrated circuit widely used in various applications such as timers, pulse generation, and oscillator circuits. Understanding the function of each pin is crucial for its proper operation. The question specifically focuses on the control terminal (Pin 5) of the 555 timer IC and why it is connected to ground through a capacitor, typically around \( \approx 0.01\mu\text{F} \).

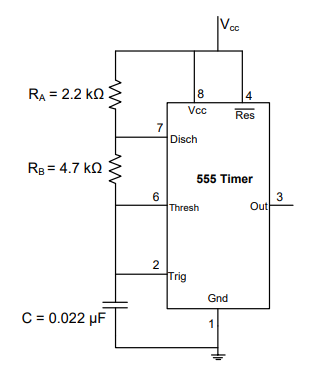

Control Terminal (Pin 5) Functionality

The control terminal, also known as the control voltage pin (Pin 5), provides direct access to the internal voltage divider network of the 555 timer IC. This pin is primarily used for:

• Modulating the threshold and trigger voltage levels: By applying an external voltage to Pin 5, the threshold voltage (which is normally \(\frac{2}{3}V_{CC}\)) and the trigger voltage (which is normally \(\frac{1}{3}V_{CC}\)) can be varied. This allows for pulse width modulation (PWM) or frequency modulation (FM) applications.
• Noise suppression: When the control terminal (Pin 5) is not being used for external voltage control, it is commonly connected to ground through a small capacitor, typically \( \approx 0.01\mu\text{F} \).

Capacitor Connection on Pin 5 and Noise Prevention

The connection of a capacitor (around \( 0.01\mu\text{F} \)) from the control terminal (Pin 5) to ground serves a very important purpose: noise suppression. Here's why this is essential:

• The internal voltage divider that sets the threshold and trigger levels can be susceptible to external electrical noise.
• Noise coupled onto Pin 5 can cause erratic behavior or false triggering of the 555 timer IC.
• By connecting a bypass capacitor to ground, any high-frequency noise spikes present on the control terminal are shunted to ground. This effectively filters out the noise.
• This ensures that the internal voltage reference levels remain stable and accurate, preventing unintended transitions or false triggering due to spurious signals.

Analyzing the Options

Let's evaluate each given option based on the functionality of the control terminal (Pin 5) and the purpose of the capacitor connection:

• 1. protect the IC from inadvertent application of high voltage
  While protection is important in IC design, the primary role of this small capacitor on Pin 5 is not high-voltage protection. High voltage protection typically involves diodes or other voltage clamping circuits at the supply or input pins.
• 2. prevent false triggering by noise coupled onto the pin
  This option accurately describes the main function of connecting a capacitor from Pin 5 to ground. The capacitor acts as a filter, shunting high-frequency noise to ground and thus preventing false triggering of the 555 timer IC.
• 3. convert the trigger input to sharp pulse by differentiation
  Pin 5 is the control terminal, not the trigger input (Pin 2). The trigger input often uses an RC circuit for differentiation, but that is for Pin 2, not Pin 5. Therefore, this option is incorrect.
• 4. suppress any negative triggering pulse
  Again, Pin 5 is not the trigger input. The suppression of negative trigger pulses (or any unwanted trigger pulses) is typically handled at the trigger input (Pin 2) itself, often by ensuring the trigger voltage crosses the \(\frac{1}{3}V_{CC}\) threshold cleanly and without noise. The capacitor on Pin 5 is for general noise immunity on the internal reference.

Based on the analysis, the most accurate reason for connecting the control terminal (Pin 5) to ground through a capacitor is to prevent false triggering by noise coupled onto the pin. This ensures the stable and reliable operation of the 555 timer IC in various timing and oscillation applications.
