In case of an AC input signal in CE Transistor Load line can be given by a plot of

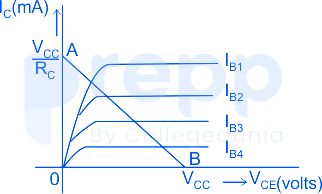

Load line of transistor
If this load line is drawn only when DC biasing is given to the transistor, but no input signal is applied, then such a load line is called as DC load line.
The load line is drawn under the conditions when an input signal along with the DC voltages are applied, such a line is called an AC load line.
Common Emitter Transistor
In the common-emitter transistor, the emitter is grounded and the input is given to the base, and the output is taken from the collector.
In this configuration, the load line is plotted between the output voltage and output current for increasing the value of the input current.
The output voltage is V CE , the output current is I C, and the input current is I B.
