The figure drawn below gives the velocity graphs of two vehicles A and B. The straight line OKP represents the velocity of vehicle A at any instant, whereas the horizontal straight line CKD represents the velocity of vehicle B at any instant. In the figure, D is the point where perpendicular from P meets the horizontal line CKD such that \(PD=\dfrac{1}{2}LD\) : What is the ratio between the distances covered by vehicles A and B in the time interval OL?
3 ∶ 4
Concept used:
Area of rectangle = Length × breadth
Area of triangle = (1/2) × Base × Height
Distance covered 'S' = Area of (V - T) graph
Calculations:
Displacement of vehicle A = Distance covered by A = Area of ΔOPL
⇒ (1/2) × OL × LP
⇒ (1/2) × OL × (LD + PD)
⇒ (1/2) × OL × (LD + LD/2)
⇒ (1/2) × OL × 3LD/2
⇒ 3/4 × OL × LD
Displacement of vehicle B = Distance covered by B = Area of rectangle OLDC
⇒ OL × LD
The ratio between the distances covered by vehicles A and B in the time interval OL
⇒ (Displacement of vehicle A)/Displacement of vehicle B
⇒ ((3/4) × OL × LD)/(OL × LD)
⇒ 3/4
∴ The ratio between the distances covered by vehicles A and B in the time interval OL is 3 ∶ 4

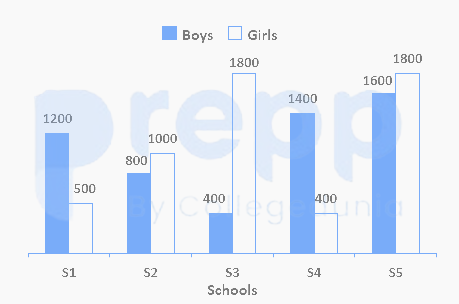

Important Questions from Bar Graph and Line Graph
The table given below shows the cost price and selling price of 5 different articles.
Article Cost price Selling price A 500 600 B 700 750 C 600 800 D 400 700 E 300 800 What is the ratio of total cost price to total selling price of all articles?
The table given below shows the cost price and value of profit of 6 articles.
Articles Cost price Profit D 700 200 E 600 150 F 400 300 G 500 400 H 300 250 I 800 350 Which of the following statement is NOT correct?
I. The profit of D, E and F is 30.63 percent of the cost price of G, H and I.
II. The ratio of total cost price to the total profit is 1 ∶ 2.

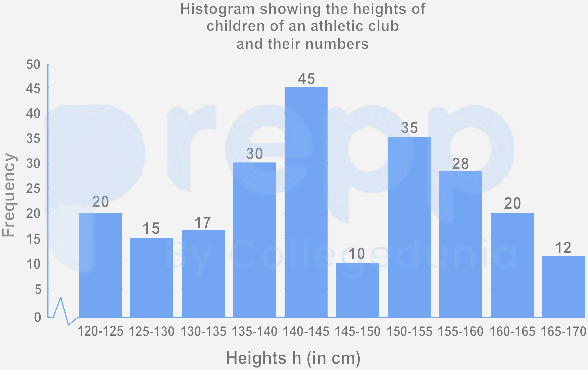

A ________ is often drawn as a guide, so that a frequency polygon can be drawn over the top.
Directions:
These data are based on the bar graph and line graph.

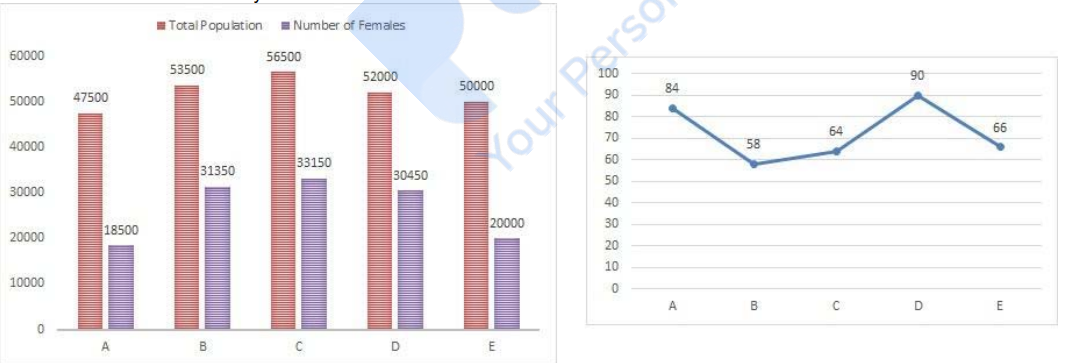

The following bar graph gives the total population of five cities(A, B, C, D and E) and number of females in the cities.
The following line graph gives the percentage of literates among females for each cities
Find the number of males in city B.
Directions:
These data are based on the bar graph and line graph.

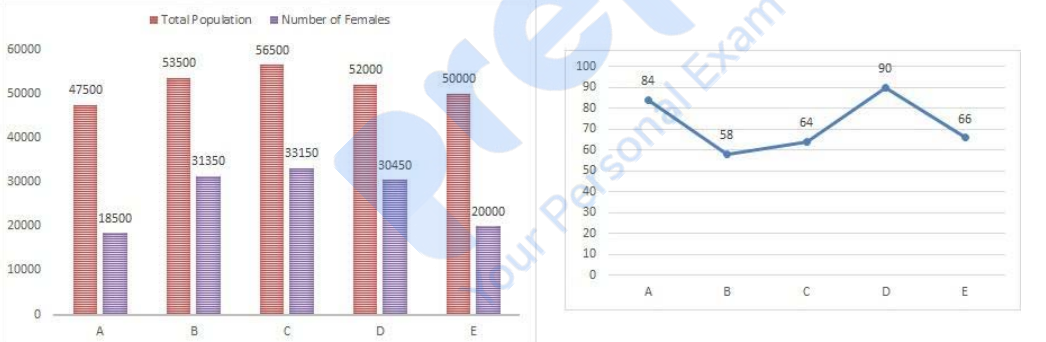

The following bar graph gives the the total population of five cities(A, B, C, D and E) and number of females in the cities.
