let g(x) be a function defined by g(x) = x - [x], where [x] represents the integer part of x. (That is, it is the largest integer which is less than or equal to x). The value of the constant term in the Fourier series expansion of g(x) is ______.
Concept:
Greatest Integer Function: It is also known as floor function.
It is written as f(x) = [x]
The value of [x] is the largest integer that is less than or equal to x.
In Mathematical notation,
[x] = max{m ∈ z | m ≤ x}
Here notation "m ∈ z" means 'm' is an integer.
Fractional function:
x - [x] = {x} ⇒ fractional part of a integer
It's value always between 0 & 1 & {x} can also be zero.
0 ≤ {x} < 1
Also the constant term in Fourier analysis is defined as:
\(\rm a_0 = \frac{1}{T} \displaystyle\int _0^T g(x) dx\)
Calculation:

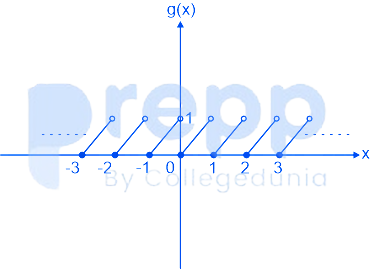

g(x) = x - [x] = {x}
It is periodic with a period (T) = 1
As we know,
∵ \(\rm a_0 = \frac{1}{T} \displaystyle\int _0^T g(x) dx\)
\(\rm a_0 = \frac{1}{1} \displaystyle\int _0^1 x dx\) (∵ x - [x] = x in (0, 1)
\(a_0 = \left. \left[ \frac{x^2}{2} \right] \right|_0^1\)
\(a_0 = \frac{1}{2}\)
∴ Constant term = 1/2
