SSC JE 2023 CE Paper 2 Question Paper (04-Dec-2023); Download PDF
SSC JE 2023 Civil Engineering Paper 2 was conducted on 4 December 2023 in computer-based mode, featuring objective-type technical questions from core civil engineering subjects to assess candidates’ professional knowledge and application skills. The selection process includes Paper 1 (objective test), Paper 2 (objective test), and Document Verification, with the final merit list prepared based on the combined marks of both papers.
SSC JE CE 2023 Paper 2 Question Paper (04-Dec-2023)
Q1.
The following bearings were taken in a closed compass traverse. Line Fore bearing Back bearing AB 80° 10' 259° 0' BC 120° 20' 301° 50' CD 170° 50' 350° 50' DE 230° 10' 49° 30' EA 310° 20' 130° 15' Calculate the corrected fore bearing of line ‘DE’ by assuming that the observed bearing of line ‘CD’ is correct.
Q2.
As per IS-456-2000, for ultimate limit states, the partial factor of safety assigned for concrete is __________.
Q4.

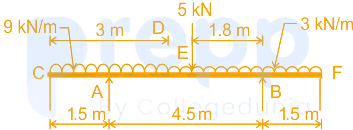

An overhanging beam CADEBF is shown in the figure below. Calculate the sum of the bending moment values at A and B. Ignore the sign conventions.
